DESCRIPTION

Refer to DTC P001013.

Click here

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

MIL

Note

P001100

Camshaft Position "A" - Timing Over-Advanced or System Performance Bank 1

Intake valve timing is stuck at a certain value when in the advance range (1 trip detection logic).
  • Valve timing
  • Cam timing oil control solenoid assembly (for intake camshaft)
  • Camshaft timing gear bolt (intake camshaft timing oil control valve)
  • Camshaft timing gear assembly
  • ECM

Comes on

SAE: P0011

P001200

Camshaft Position "A" - Timing Over-Retarded Bank 1

Intake valve timing is stuck at a certain value when in the retard range (1 trip detection logic).
  • Valve timing
  • Cam timing oil control solenoid assembly (for intake camshaft)
  • Camshaft timing gear bolt (intake camshaft timing oil control valve)
  • Camshaft timing gear assembly
  • ECM

Comes on

SAE: P0012

MONITOR DESCRIPTION

The ECM optimizes the intake valve timing using the VVT (Variable Valve Timing) system to control the intake camshaft. The VVT system includes the ECM, cam timing oil control solenoid assembly (for intake camshaft), camshaft timing gear bolt (intake camshaft timing oil control valve) and camshaft timing gear assembly. The ECM sends a target duty-cycle control signal to the cam timing oil control solenoid assembly (for intake camshaft). The camshaft timing gear bolt (intake camshaft timing oil control valve) is operated to control the oil pressure supplied to the camshaft timing gear assembly based on this signal. The camshaft timing gear assembly can advance or retard the intake camshaft.

If the difference between the target and actual intake valve timing is large, and changes in the actual intake valve timing are small, the ECM interprets this as the camshaft timing gear assembly stuck malfunction and stores a DTC.

Example:
  • DTC P001100 is stored when the following conditions "A" and "B" are met:
    1. It takes 5 seconds or more to change the valve timing by 5 deg(CA) (Condition "A").
    2. The above condition "A" is met, for 9.5 seconds or more (Condition "B").
  • DTC P001200 is stored when the following conditions "C" and "D" are met:
    1. It takes 5 seconds or more to change the valve timing by 5 deg(CA) (Condition "C").
    2. The above condition "C" is met, for 60 seconds or more (Condition "D").

These DTCs indicate that the camshaft timing gear assembly cannot operate properly due to a camshaft timing gear bolt (intake camshaft timing oil control valve) malfunction or the presence of foreign matter in the camshaft timing gear bolt (intake camshaft timing oil control valve).

MONITOR STRATEGY

Required Sensors/Components (Main)

Cam timing oil control solenoid assembly (for intake camshaft)

Camshaft timing gear bolt (intake camshaft timing oil control valve)

Crankshaft timing gear assembly

Required Sensors/Components (Related)

Crankshaft position sensor

Camshaft position sensor

Engine coolant temperature sensor

Frequency of Operation

Continuous

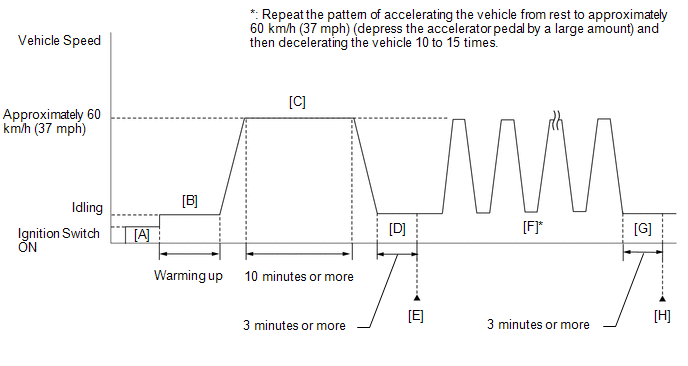

CONFIRMATION DRIVING PATTERN

  1. Connect the GTS to the DLC3.
  2. Turn the ignition switch to ON.
  3. Turn the GTS on.
  4. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
  5. Turn the ignition switch off and wait for at least 30 seconds.
  6. Turn the ignition switch to ON.
  7. Turn the GTS on [A].
  8. Start the engine and warm it up until the engine coolant temperature reaches 75°C (167°F) or higher [B].
  9. Drive the vehicle at approximately 60 km/h (37 mph) for 10 minutes or more [C].

    CAUTION:

    When performing the confirmation driving pattern, obey all speed limits and traffic laws.

  10. Idle the engine for 3 minutes or more [D].
  11. Enter the following menus: Powertrain / Engine / Trouble Codes [E].
  12. Read the pending DTCs.

    HINT:

    • If a pending DTC is output, the system is malfunctioning.
    • If a pending DTC is not output, perform the following procedure.
  13. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
  14. Input the DTC: P001100 or P0001200.
  15. Check the DTC judgment result.

    GTS Display

    Description

    NORMAL
    • DTC judgment completed
    • System normal

    ABNORMAL
    • DTC judgment completed
    • System abnormal

    INCOMPLETE
    • DTC judgment not completed
    • Perform driving pattern after confirming DTC enabling conditions

    HINT:

    • If the judgment result shows NORMAL, the system is normal.
    • If the judgment result shows ABNORMAL, the system has a malfunction.
    • If the judgment result shows INCOMPLETE, perform steps [F] through [H].
  16. Repeat the pattern of accelerating the vehicle from rest to approximately 60 km/h (37 mph) and then decelerating the vehicle 10 to 15 times [F].

    CAUTION:

    When performing the confirmation driving pattern, obey all speed limits and traffic laws.

    HINT:

    Depress the accelerator pedal by a large amount.

  17. Idle the engine for 3 minutes or more [G].
  18. Enter the following menus: Powertrain / Engine / Trouble Codes [H].
  19. Read the pending DTCs.

    HINT:

    • If a pending DTC is output, the system is malfunctioning.
    • If a pending DTC is not output, perform the following procedure.
  20. Check the DTC judgment result again.

    HINT:

    • If the judgment result shows NORMAL, the system is normal.
    • If the judgment result shows ABNORMAL, the system has a malfunction.
    • If the judgment result shows INCOMPLETE, perform the Confirmation Driving Pattern and check the DTC judgment result again.

WIRING DIAGRAM

Refer to DTC P001013.

Click here

CAUTION / NOTICE / HINT

HINT:

  • DTC P001100 or P001200 may be stored when foreign matter in the engine oil is caught in some parts of the system. The DTC will remain stored even if the system returns to normal after a short time. That foreign matter may then be captured by the oil filter.
  • Read freeze frame data using the GTS. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.

PROCEDURE

1.

CHECK ANY OTHER DTCS OUTPUT (IN ADDITION TO DTC P001100 OR P001200)

(a) Read the DTCs.

Powertrain > Engine > Trouble Codes

Result

Proceed to

P001100 or P001200 and other DTCs are output

A

P001100 or P001200 is output

B

HINT:

If any DTCs other than P001100 or P001200 are output, troubleshoot those DTCs first.

A

GO TO DTC CHART
B

2.

PERFORM ACTIVE TEST USING GTS (CONTROL THE INTAKE VVT OCV DUTY RATIO BANK 1)

(a) Start the engine.

(b) Read the Data List while performing the Active Test with the engine idling.

Powertrain > Engine > Active Test

Active Test Display

Control the Intake VVT OCV Duty Ratio Bank 1

Data List Display

Intake VVT Change Angle Bank 1

Intake VVT OCV Control Duty Ratio Bank 1

Standard:

GTS Operation

Data List (Intake VVT Change Angle Bank 1)

-100% to 100%

Varies by 30 DegFR or more
NG

GO TO STEP 5

OK

3.

CLEAR DTC

(a) Clear the DTCs.

Powertrain > Engine > Clear DTCs

(b) Turn the ignition switch off and wait for at least 30 seconds.

NEXT

4.

CHECK WHETHER DTC OUTPUT RECURS (DTC P001100 OR P001200)

(a) Start the engine and warm it up.

(b) Drive the vehicle in accordance with the driving pattern described in the Confirmation Driving Pattern.

(c) Read the DTCs.

Powertrain > Engine > Trouble Codes

HINT:

DTC P001100 or P001200 may be stored when foreign matter in the engine oil is caught in some parts of the system. The DTC will remain stored even if the system returns to normal after a short time. That foreign matter may then be captured by the oil filter.

Result

Proceed to

DTCs are not output

A

P001100 or P001200 is output

B
A

CHECK FOR INTERMITTENT PROBLEMS

B

GO TO STEP 5

5.

INSPECT CAM TIMING OIL CONTROL SOLENOID ASSEMBLY (FOR INTAKE CAMSHAFT)

Click here

NG

GO TO STEP 8

OK

6.

INSPECT CAMSHAFT TIMING GEAR BOLT (INTAKE CAMSHAFT TIMING OIL CONTROL VALVE)

Click here

NG

GO TO STEP 10

OK

7.

CHECK VALVE TIMING (CHECK FOR LOOSE AND JUMPED TEETH ON TIMING CHAIN)

*a

Timing Mark

*b

TDC Timing Mark

*c

Groove

(a) Remove the cylinder head cover sub-assembly.

(b) Turn the crankshaft pulley and align its groove with the TDC timing mark of the timing chain cover.

(c) Check that the timing marks of the camshaft timing gear assembly and camshaft timing exhaust gear assembly are at the positions shown in the illustration.

HINT:

If the timing marks are not as shown, turn the crankshaft one revolution clockwise.

OK:

Timing marks on camshaft timing gear assembly and camshaft timing exhaust gear assembly are at the positions shown in the illustration.

HINT:

If the result is not as specified, check for mechanical malfunctions that may have affected the valve timing, such as a jumped tooth or stretching of the timing chain.

OK

GO TO STEP 12

NG

REPAIR OR REPLACE MALFUNCTIONING PARTS, COMPONENT AND AREA

8.

REPLACE CAM TIMING OIL CONTROL SOLENOID ASSEMBLY (FOR INTAKE CAMSHAFT)

HINT:

Click here

NEXT

9.

INSPECT CAMSHAFT TIMING GEAR BOLT (INTAKE CAMSHAFT TIMING OIL CONTROL VALVE)

Click here

OK

GO TO STEP 11

NG

10.

REPLACE CAMSHAFT TIMING GEAR BOLT (INTAKE CAMSHAFT TIMING OIL CONTROL VALVE)

HINT:

Click here

NEXT

11.

PERFORM ACTIVE TEST USING GTS (CONTROL THE INTAKE VVT OCV DUTY RATIO BANK 1)

(a) Start the engine.

(b) Read the Data List while performing the Active Test with the engine idling.

Powertrain > Engine > Active Test

Active Test Display

Control the Intake VVT OCV Duty Ratio Bank 1

Data List Display

Intake VVT Change Angle Bank 1

Intake VVT OCV Control Duty Ratio Bank 1

Standard:

GTS Operation

Data List (Intake VVT Change Angle Bank 1)

-100% to 100%

Varies by 30 DegFR or more
OK

END
NG

12.

REPLACE CAMSHAFT TIMING GEAR ASSEMBLY

HINT:

Click here

Perform "Inspection After Repair" after replacing the camshaft timing gear assembly.

Click here

NEXT

13.

CLEAR DTC

(a) Clear the DTCs.

Powertrain > Engine > Clear DTCs

(b) Turn the ignition switch off and wait for at least 30 seconds.

NEXT

14.

CHECK WHETHER DTC OUTPUT RECURS (DTC P001100 OR P001200)

(a) Start the engine and warm it up.

(b) Drive the vehicle in accordance with the driving pattern described in the Confirmation Driving Pattern.

(c) Read the DTCs.

Powertrain > Engine > Trouble Codes

HINT:

DTC P001100 or P001200 may be stored when foreign matter in the engine oil is caught in some parts of the system. The DTC will remain stored even if the system returns to normal after a short time. That foreign matter may then be captured by the oil filter.

Result

Proceed to

DTCs are not output

A

P001100 or P001200 is output

B
A

END
B

15.

CHECK ENGINE MECHANICAL SYSTEM

(a) Check for mechanical malfunctions that affect the valve timing, such as a jumped tooth or stretching of the timing chain.

HINT:

Click here

NG

REPAIR OR REPLACE MALFUNCTIONING PARTS, COMPONENT AND AREA
OK

16.

CLEAR DTC

(a) Clear the DTCs.

Powertrain > Engine > Clear DTCs

(b) Turn the ignition switch off and wait for at least 30 seconds.

NEXT

17.

CHECK ECM (DTC P001100 OR P001200)

(a) Start the engine and warm it up.

(b) Drive the vehicle in accordance with the driving pattern described in the Confirmation Driving Pattern.

(c) Read the DTCs.

Powertrain > Engine > Trouble Codes

Result

Proceed to

DTCs are not output

A

P001100 or P001200 is output

B

HINT:

DTC P001100 or P001200 may be stored when foreign matter in the engine oil is caught in some parts of the system. The DTC will remain stored even if the system returns to normal after a short time. That foreign matter may then be captured by the oil filter.

A

CHECK FOR INTERMITTENT PROBLEMS

B

REPLACE ECM
