Components

COMPONENTS

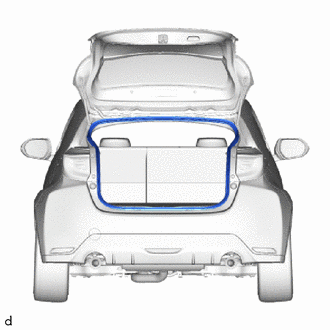

ILLUSTRATION

*1

BACK DOOR WEATHERSTRIP

-

-

●

Non-reusable part

-

-

Removal

REMOVAL

PROCEDURE

1. REMOVE BACK DOOR WEATHERSTRIP

(a) Remove the back door weatherstrip.

Installation

INSTALLATION

PROCEDURE

1. INSTALL BACK DOOR WEATHERSTRIP

(a) Remove any non-drying sealer on the body with non-residue solvent.

(b) Align the paint marks with the positions on the body flange and install a new back door weatherstrip.

Paint Mark:

Location

Color

Center

Pink

Side

White

NOTICE:

  • Always align the paint mark when installing the part. If the paint mark position is out of place, coolant leaks may occur.
  • After the installation, check that the corners are properly installed.

HINT:

To easily install the weatherstrip, first install the area with the paint mark as shown in the illustration. Then install the part toward the corners and push any excess length into the corners.

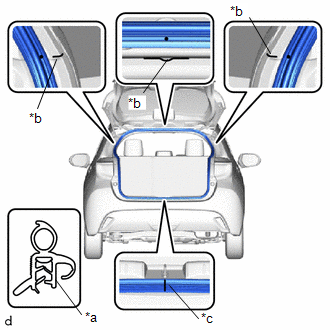

*a

Paint Mark

*b

Mark Position

*c

Connecting Portion
