Toyota Yaris: Theft Deterrent / Keyless Entry / Security Horn Assembly

Toyota Yaris XP210 (2020-2026) Reapir and Service Manual / Vehicle Interior / Theft Deterrent / Keyless Entry / Security Horn Assembly

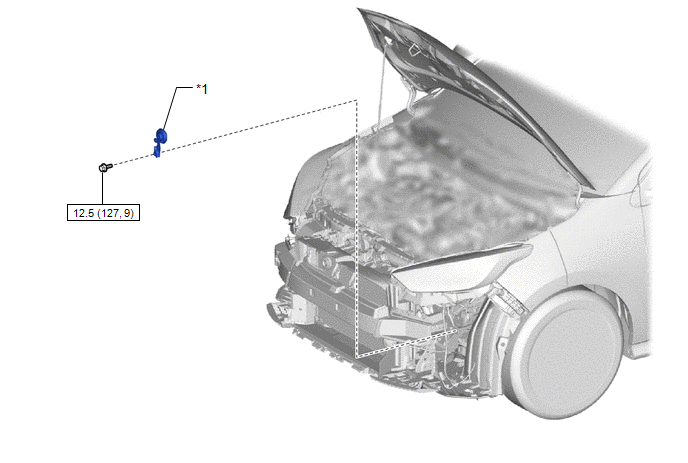

Components

COMPONENTS

ILLUSTRATION

*1

SECURITY HORN ASSEMBLY

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

Inspection

INSPECTION

PROCEDURE

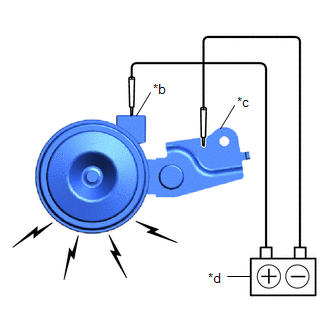

1. INSPECT SECURITY HORN ASSEMBLY

(a) Check the operation.

(1) Apply battery voltage and check the operation of the security horn assembly.

Standard:

Measurement Condition

Specified Condition

Battery positive (+) → Terminal 1

Horn sounds

Battery negative (-) → Terminal 2

If the result is not as specified, replace the security horn assembly.

Removal

REMOVAL

PROCEDURE

1. REMOVE FRONT BUMPER ASSEMBLY

Click here

2. REMOVE SECURITY HORN ASSEMBLY

(a) Disconnect the connector.

(b) Remove the bolt and disengage the hook, and remove the security horn assembly.

Installation

INSTALLATION

PROCEDURE

1. INSTALL SECURITY HORN ASSEMBLY

(a) Engage the hook to install the security horn assembly with the bolt.

Torque:

12.5 N·m {127 kgf·cm, 9 ft·lbf}

(b) Connect the connector.

2. INSTALL FRONT BUMPER ASSEMBLY

Click here
