Toyota Yaris: Transmission Control Cable / Removal

Toyota Yaris XP210 (2020-2024) Reapir and Service Manual / Drivetrain / Ea67f (manual Transmission / Transaxle) / Transmission Control Cable / Removal

REMOVAL

CAUTION / NOTICE / HINT

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

  • Learning completes when vehicle is driven

    Effect/Inoperative Function When Necessary Procedures are not Performed

    Necessary Procedures

    Link

    Lane tracing assist system

    Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 second or more.

    Pre-collision system

    Stop and start system

    Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes)

  • Learning completes when vehicle is operated normally

    Effect/Inoperative Function When Necessary Procedures are not Performed

    Necessary Procedures

    Link

    Power door lock control system

    • Back door opener

    Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.

    Air conditioning system

    After the ignition switch is turned to ON, the servo motor standard position is recognized.

    -

PROCEDURE

1. SECURE VEHICLE

(a) Fully apply the parking brake and chock a wheel.

CAUTION:

  • Make sure to apply the parking brake and chock a wheel before performing this procedure.
  • If the vehicle is not secure and the shift lever is moved to neutral, the vehicle may suddenly move, possibly resulting in an accident or serious injury.

2. REMOVE AIR CONDITIONER UNIT ASSEMBLY

Click here

3. REMOVE AIR CLEANER ASSEMBLY

Click here

4. REMOVE TRANSMISSION CONTROL CABLE ASSEMBLY

(a) Remove the clip and disconnect the transmission control select cable from the floor shift shift lever assembly.

*a

Transmission Control Select Cable

*b

Transmission Control Shift Cable

(b) Disconnect the transmission control shift cable from the floor shift shift lever assembly.

(c) Using a screwdriver, pull out the stopper of the transmission control select cable.

NOTICE:

Do not remove the stopper. If it is removed, reinstall it to its original position.

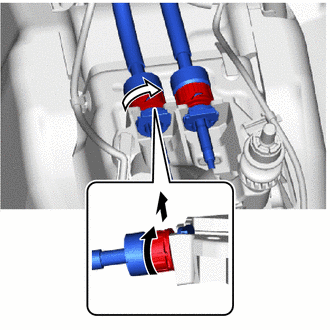

(d) Rotate the nut clockwise approximately 180° and, while holding the nut in that position, disconnect the transmission control select cable from the floor shift shift lever assembly.

NOTICE:

  • Do not rotate the nut excessively as the internal spring may jump out and the transmission control cable assembly will not be reusable.
  • Do not forcibly pull the transmission control cable assembly into the cabin.

(e) Disconnect the transmission control shift cable from the floor shift shift lever assembly in the same manner as the transmission control select cable.

(f) Remove the 2 clips (A) to disconnect the transmission control cable assembly from the manual transaxle assembly.

(g) Remove the 2 clips (B) to disconnect the transmission control cable assembly from the control cable bracket assembly.

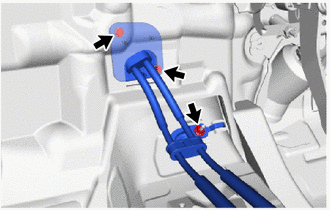

(h) Remove the nut.

(i) Remove the 2 bolts and transmission control cable assembly from the vehicle body.
