Toyota Yaris: Quarter Window Glass / Removal
REMOVAL
CAUTION / NOTICE / HINT
NOTICE:
Make sure to use Toyota Genuine Windshield Glass Adhesive (High Modulus Type) or equivalent.
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
PROCEDURE
1. REMOVE INNER ROOF SIDE GARNISH
Click here
.gif)
2. REMOVE CENTER PILLAR UPPER GARNISH
Click here
3. REMOVE ROOF SIDE INNER GARNISH
Click here
4. REMOVE FRONT ROOF SIDE RAIL WEATHERSTRIP RETAINER
Click here
5. REMOVE QUARTER WINDOW ASSEMBLY
(a) for RH Side:

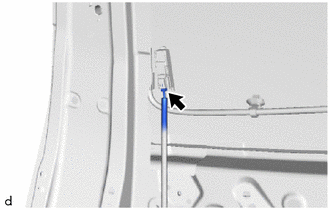

| (1) Disconnect the connector. |
|
(b) Apply protective tape to the area around the installation position of the quarter window assembly on the vehicle body to prevent it from being scratched.
.png) | Protective Tape |

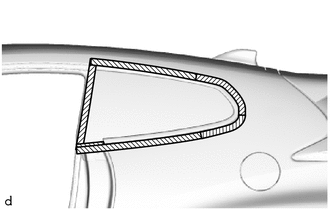

| (c) Using a knife, cut off the moulding as shown in the illustration. |
|

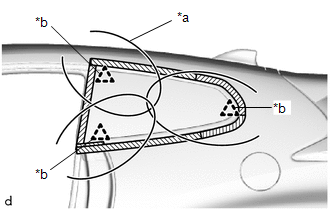

| (d) Pass a piano wire between the vehicle body and quarter window assembly from the interior. |
|
(e) Tie both wire ends to wooden blocks or similar objects that can serve as handles.
(f) Cut off the adhesive by pulling the piano wire around the quarter window assembly.
NOTICE:
When separating the quarter window assembly, be careful not to damage the paint or interior and exterior ornaments.

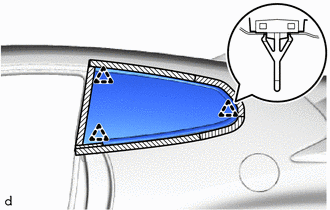

| (g) Using suction cups, disengage the clips to remove the quarter window assembly. NOTICE: Be careful not to drop the quarter window assembly. |
|
Components
C..
Installation
INSTALLATION CAUTION / NOTICE / HINT NOTICE: Make sure to use Toyota Genuine Windshield Glass Adhesive (High Modulus Type) or equivalent. HINT:
Use the same procedure for the RH side and LH side...
