REMOVAL

PROCEDURE

1. REMOVE CENTER LOWER INSTRUMENT COVER

Click here

2. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL

Click here

3. REMOVE SWITCH HOLE BASE SUB-ASSEMBLY

Click here

4. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

Click here

5. REMOVE CONSOLE BOX ASSEMBLY

Click here

6. REMOVE FRONT DOOR SCUFF PLATE LH

Click here

7. REMOVE COWL SIDE TRIM BOARD LH

Click here

8. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Click here

9. DISCONNECT NO. 1 ROOF HEADLINING MOULDING LH

Click here

10. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP LH

Click here

11. REMOVE NO. 1 INSTRUMENT SIDE PANEL

Click here

12. DISCONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

Click here

13. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY

Click here

14. REMOVE HEADLIGHT LEVELING SWITCH

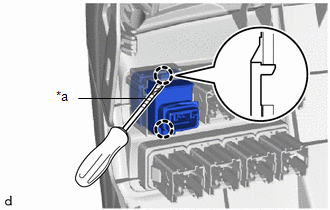

(a) Using a screwdriver with its tip wrapped in protective tape, disengage the claws to remove the headlight leveling switch.

*a

Protective Tape

    Components

    COMPONENTS ILLUSTRATION *1 CENTER LOWER INSTRUMENT COVER *2 LOWER INSTRUMENT PANEL FINISH PANEL *3 SWITCH HOLE BASE SUB-ASSEMBLY *4 SHIFT LEVER KNOB SUB-ASSEMBLY *5 CONSOLE BOX ASSEMBLY - - ILLUSTRATION *1 FRONT DOOR SCUFF PLATE LH *2 COWL SIDE TRIM BOARD LH *3 NO...

    Inspection

    INSPECTION PROCEDURE 1. INSPECT HEADLIGHT LEVELING SWITCH (a) Check the voltage. (1) Connect a positive (+) lead from the auxiliary battery to terminal 5 (B) and a negative (-) lead to terminal 2 (E)...
