Toyota Yaris: Headlight Leveling Switch / Components
COMPONENTS

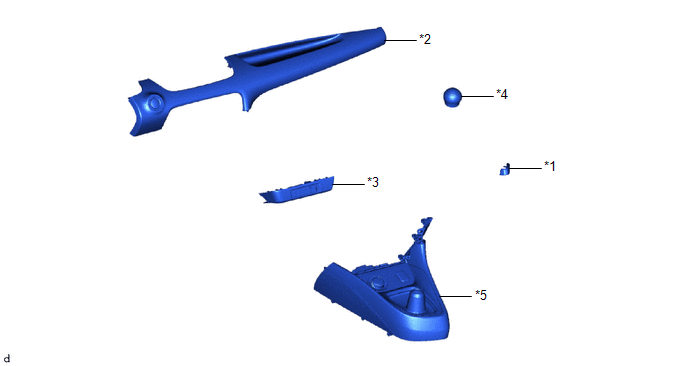

ILLUSTRATION
.png)
| *1 | CENTER LOWER INSTRUMENT COVER | *2 | LOWER INSTRUMENT PANEL FINISH PANEL |
| *3 | SWITCH HOLE BASE SUB-ASSEMBLY | *4 | SHIFT LEVER KNOB SUB-ASSEMBLY |
| *5 | CONSOLE BOX ASSEMBLY | - | - |
ILLUSTRATION
| *1 | FRONT DOOR SCUFF PLATE LH | *2 | COWL SIDE TRIM BOARD LH |
| *3 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY | *4 | NO. 1 ROOF HEADLINING MOULDING LH |
| *5 | FRONT DOOR OPENING TRIM WEATHERSTRIP LH | *6 | NO. 1 INSTRUMENT SIDE PANEL |
| *7 | HOOD LOCK CONTROL LEVER SUB-ASSEMBLY | *8 | LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY |
| *9 | HEADLIGHT LEVELING SWITCH | - | - |
Removal
REMOVAL PROCEDURE 1. REMOVE CENTER LOWER INSTRUMENT COVER Click here
2. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL Click here
3. REMOVE SWITCH HOLE BASE SUB-ASSEMBLY Click here
4...
