Toyota Yaris XP210 (2020-2025) Reapir and Service Manual / Engine & Hybrid System / G16e-gts (lubrication) / Oil Pressure And Temperature Sensor / Removal

REMOVAL

PROCEDURE

1. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY

Click here

2. REMOVE OIL PRESSURE AND TEMPERATURE SENSOR

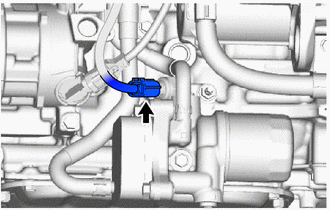

(a) Disconnect the oil pressure and temperature sensor connector.

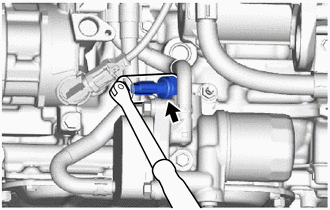

(b) Using a 24 mm deep socket wrench, remove the oil pressure and temperature sensor.

NOTICE:

If the oil pressure and temperature sensor is dropped or subjected to a strong impact, replace it with a new one.

    On-vehicle Inspection

    ON-VEHICLE INSPECTION CAUTION / NOTICE / HINT CAUTION: To prevent burns, do not touch the engine, exhaust manifold or other high temperature components while the engine is hot...

    Inspection

    INSPECTION PROCEDURE 1. INSPECT OIL PRESSURE AND TEMPERATURE SENSOR (a) Check the oil pressure and temperature sensor output voltage. (1) Apply 5 V between terminals 3 (VC) and 2 (GND)...
