Toyota Yaris: Brake Master Cylinder / Reassembly

Toyota Yaris XP210 (2020-2022) Reapir and Service Manual / Brake / Brake System (other) / Brake Master Cylinder / Reassembly

REASSEMBLY

PROCEDURE

1. INSTALL BRAKE MASTER CYLINDER RESERVOIR STRAINER

(a) Install the brake master cylinder reservoir strainer to the brake master cylinder reservoir assembly.

2. INSTALL BRAKE MASTER CYLINDER RESERVOIR FILLER CAP ASSEMBLY

(a) Install the brake master cylinder reservoir filler cap assembly to the brake master cylinder reservoir assembly.

3. INSTALL MASTER CYLINDER RESERVOIR GROMMET

(a) Apply a light layer of lithium soap base glycol grease to the entire circumference of 2 new master cylinder reservoir grommets.

Lithium Soap Base Glycol Grease

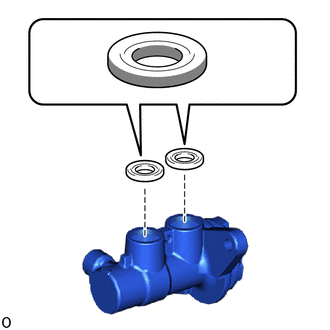

(b) Install the 2 master cylinder reservoir grommets to the brake master cylinder body.

4. INSTALL BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY

(a) Secure the brake master cylinder body in a vise.

NOTICE:

Place aluminum plates on the vise to prevent damage to the brake master cylinder body.

(b) Install the brake master cylinder reservoir assembly to the brake master cylinder body.

NOTICE:

Do not drop the brake master cylinder reservoir assembly.

5. INSTALL BRAKE MASTER CYLINDER RING PIN

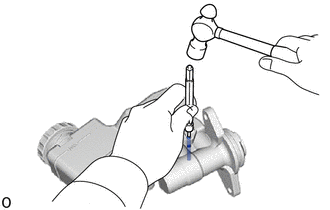

(a) Using a 5 mm pin punch and a hammer, tap in the brake master cylinder ring pin to secure the brake master cylinder reservoir assembly.

(b) Remove the brake master cylinder sub-assembly from the vise.
