Toyota Yaris: Rear Console Box / Reassembly
REASSEMBLY
PROCEDURE
1. INSTALL PARKING BRAKE HOLE COVER SUB-ASSEMBLY

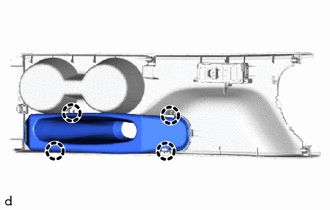

(a) Engage the claws to install the parking brake hole cover sub-assembly. | |
