Toyota Yaris: G16e-gts (emission Control) / Pcv Valve
Components
COMPONENTS
ILLUSTRATION
| *1 | PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY) | - | - |
On-vehicle Inspection
ON-VEHICLE INSPECTION
PROCEDURE
1. INSPECT PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY)

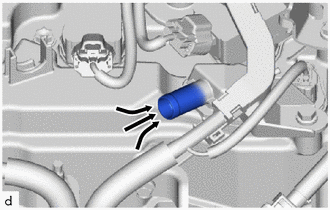

| (a) Check the PCV valve (ventilation valve sub-assembly) operation. (1) Start the engine. (2) Slide the clip and disconnect the No. 2 ventilation hose from the cylinder head cover sub-assembly. (3) Check that air is sucked into the cylinder head cover sub-assembly. Standard: Air is sucked into the cylinder head cover sub-assembly. If the result is not as specified, replace the PCV valve (ventilation valve sub-assembly). |
|
Removal
REMOVAL
CAUTION / NOTICE / HINT
HINT:
When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
-
Learning completes when vehicle is driven
Effect/Inoperative Function When Necessary Procedures are not Performed
Necessary Procedures
Link
Lane tracing assist system
Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 second or more.
Pre-collision system
Stop and start system
Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes)
-
Learning completes when vehicle is operated normally
Effect/Inoperative Function When Necessary Procedures are not Performed
Necessary Procedures
Link
Power door lock control system
- Back door opener
Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.
Air conditioning system
After the ignition switch is turned to ON, the servo motor standard position is recognized.
-
PROCEDURE
1. REMOVE INTAKE MANIFOLD
Click here
2. REMOVE PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY)
| (a) Remove the PCV valve (ventilation valve sub-assembly) from the cylinder head sub-assembly. |
|
Inspection
INSPECTION
PROCEDURE
1. INSPECT PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY)
(a) Install a hose to the PCV valve (ventilation valve sub-assembly).
(b) Check PCV valve (ventilation valve sub-assembly) operation.
(1) Blow air into the cylinder head sub-assembly side, and check that air passes through easily.
| *a | Hose |
| *b | Air |
 | Cylinder Head Sub-assembly Side |
CAUTION:
Do not suck air through the valve.
Petroleum substances inside the valve are hazardous to your health.
If the result is not as specified, replace the PCV valve (ventilation valve sub-assembly).
(2) Blow air into the intake manifold side, and check that air passes through with difficulty.
| *a | Hose |
| *b | Air |
 | Intake Manifold Side |
CAUTION:
Do not suck air through the valve.
Petroleum substances inside the valve are hazardous to your health.
If the result is not as specified, replace the PCV valve (ventilation valve sub-assembly).
(c) Remove the hose from the PCV valve (ventilation valve sub-assembly).
Installation
INSTALLATION
PROCEDURE
1. INSTALL PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY)
(a) Apply a light coat of engine oil to the O-ring.
NOTICE:
When reusing the PCV valve (ventilation valve sub-assembly), inspect the O-ring.
(b) Install the PCV valve (ventilation valve sub-assembly) to the cylinder head sub-assembly.
2. INSTALL INTAKE MANIFOLD
Click here
