Toyota Yaris: Vehicle Stability Control System / Parts Location
PARTS LOCATION
ILLUSTRATION

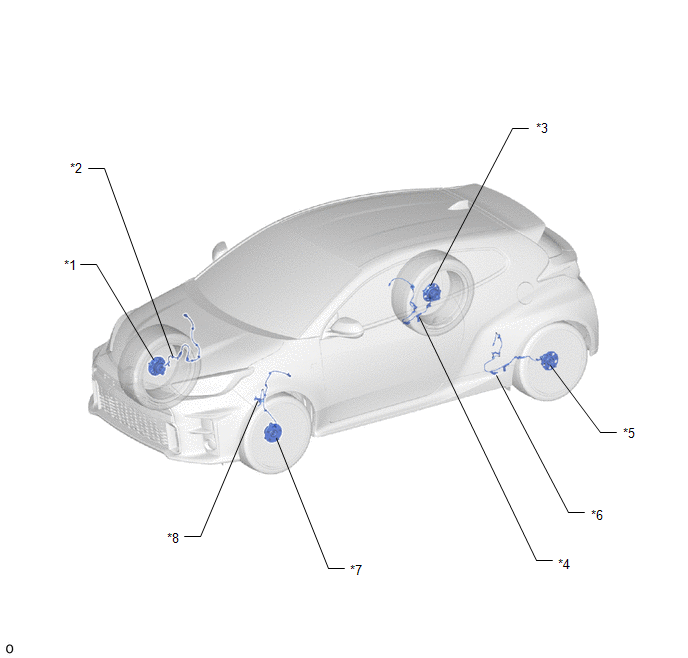

| *1 | FRONT AXLE HUB SUB-ASSEMBLY RH - FRONT SPEED SENSOR ROTOR RH | *2 | FRONT SPEED SENSOR RH |
| *3 | REAR AXLE HUB AND BEARING ASSEMBLY RH - REAR SPEED SENSOR ROTOR RH | *4 | REAR SPEED SENSOR RH |
| *5 | REAR AXLE HUB AND BEARING ASSEMBLY LH - REAR SPEED SENSOR ROTOR LH | *6 | REAR SPEED SENSOR LH |
| *7 | FRONT AXLE HUB SUB-ASSEMBLY LH - FRONT SPEED SENSOR ROTOR LH | *8 | FRONT SPEED SENSOR LH |
ILLUSTRATION

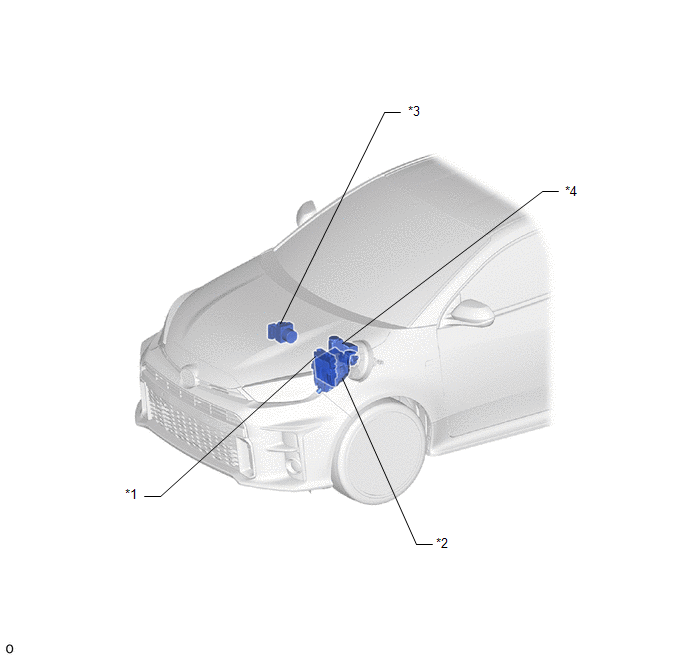

| *1 | ECM | *2 | NO. 1 ENGINE ROOM RELAY BLOCK - ABS NO. 1 FUSE - ABS NO. 2 FUSE - ECU-IGP NO. 3 FUSE |
| *3 | BRAKE ACTUATOR ASSEMBLY - SKID CONTROL ECU | *4 | BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY - BRAKE FLUID LEVEL WARNING SWITCH |
ILLUSTRATION

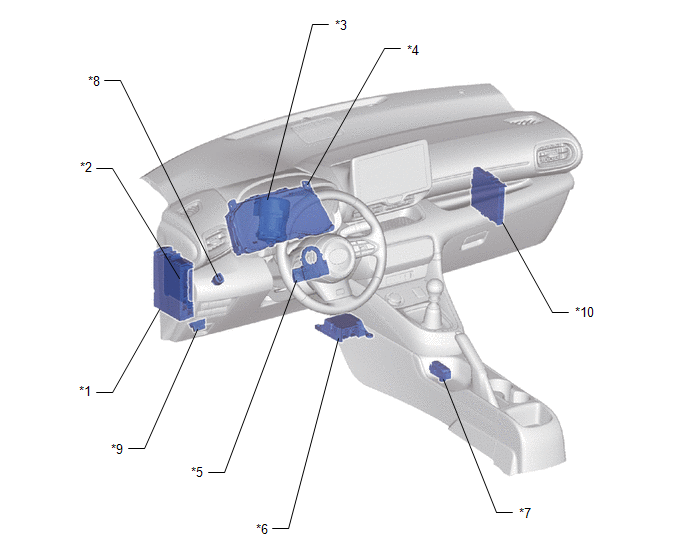

| *1 | POWER DISTRIBUTION BOX ASSEMBLY - ECU-DCC NO. 1 FUSE - ECU-DCC NO. 2 FUSE - ECU-IGR NO. 1 FUSE - A/BAG-IGR FUSE - STOP FUSE | *2 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *3 | POWER STEERING ECU ASSEMBLY | *4 | COMBINATION METER ASSEMBLY - ABS WARNING LIGHT - BRAKE SYSTEM WARNING LIGHT - VSC OFF INDICATOR LIGHT - SLIP INDICATOR LIGHT - MULTI-INFORMATION DISPLAY (TRC OFF MESSAGE) |
| *5 | STEERING SENSOR | *6 | AIRBAG SENSOR ASSEMBLY - YAW RATE AND ACCELERATION SENSOR |
| *7 | COMBINATION SWITCH ASSEMBLY - VSC OFF SWITCH | *8 | STOP LIGHT SWITCH ASSEMBLY |
| *9 | DLC3 | *10 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
Precaution
PRECAUTION HANDLING PRECAUTION (a) Always ensure that the ignition switch is off before removing the brake actuator assembly or a sensor unless specifically instructed by the repair manual...
