PARTS LOCATION

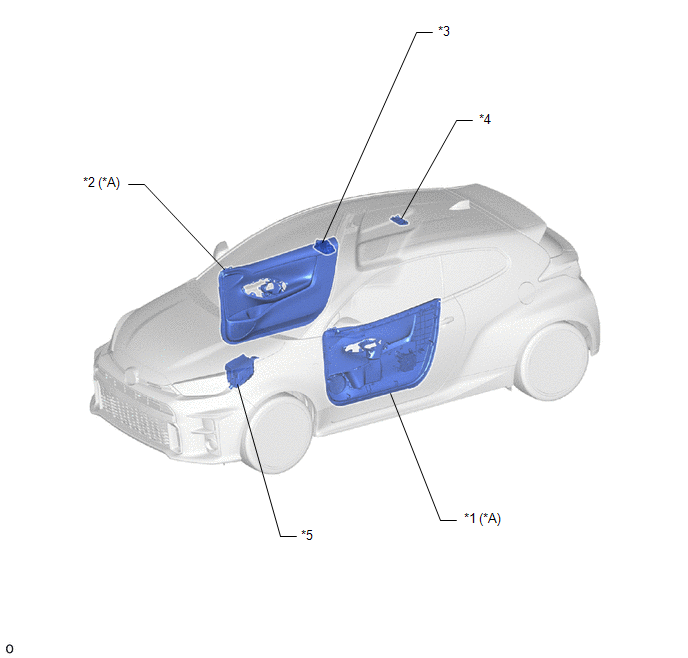

ILLUSTRATION

*A

w/ Ambient Illumination Light

-

-

*1

FRONT DOOR AMBIENT ILLUMINATION LIGHT LH

(FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH)

*2

FRONT DOOR AMBIENT ILLUMINATION LIGHT RH

(FRONT DOOR TRIM BOARD SUB-ASSEMBLY RH)

*3

MAP LIGHT ASSEMBLY

*4

ROOM LIGHT ASSEMBLY

*5

NO. 1 ENGINE ROOM RELAY BLOCK

- D/C CUT FUSE

-

-

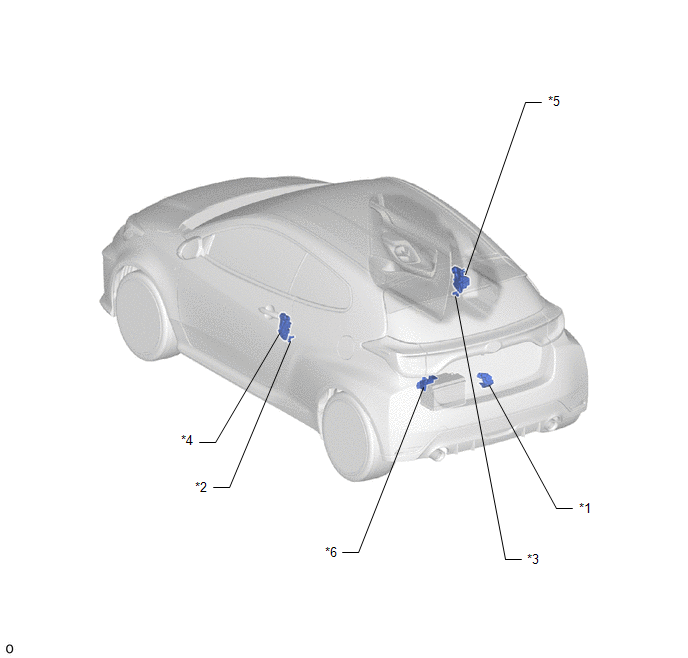

ILLUSTRATION

*1

BACK DOOR LOCK ASSEMBLY WITH COURTESY LIGHT SWITCH

*2

FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (LH)

*3

FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (RH)

*4

FRONT DOOR LOCK ASSEMBLY LH

*5

FRONT DOOR LOCK ASSEMBLY RH

*6

FUSIBLE LINK BLOCK ASSEMBLY

- R/B RR NO. 1 FUSE

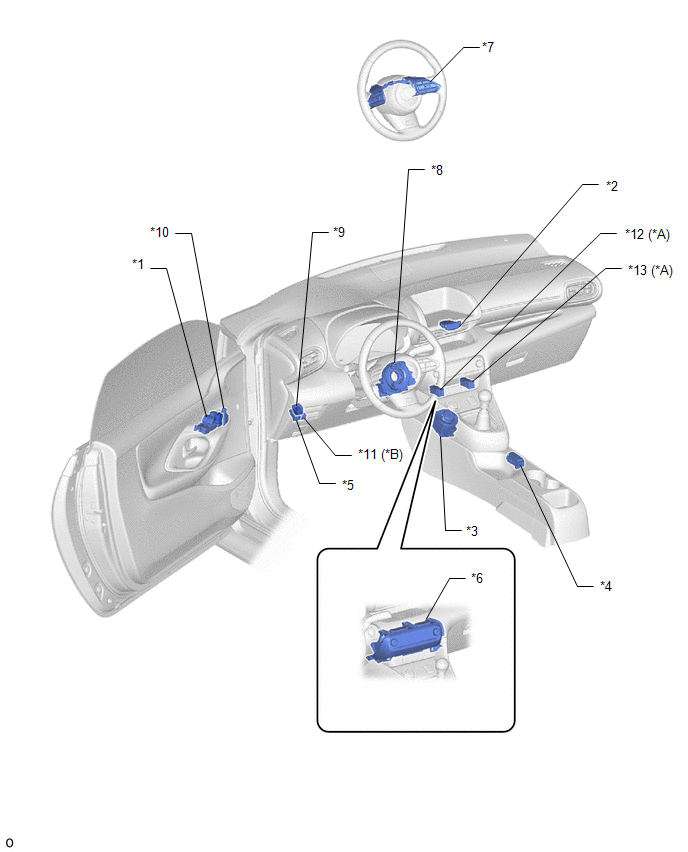

ILLUSTRATION

*A

w/ Seat Heater System

*B

w/ Steering Heater

*1

MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY

*2

HAZARD WARNING SIGNAL SWITCH ASSEMBLY

*3

NO. 2 COMBINATION SWITCH ASSEMBLY

*4

COMBINATION SWITCH ASSEMBLY

*5

AUTO HIGH BEAM SWITCH

*6

AIR CONDITIONING CONTROL ASSEMBLY

*7

STEERING PAD SWITCH ASSEMBLY

*8

SPIRAL CABLE SUB-ASSEMBLY

*9

HEADLIGHT LEVELING SWITCH

*10

OUTER MIRROR SWITCH ASSEMBLY

*11

STEERING HEATER SWITCH

*12

SEAT HEATER SWITCH LH

*13

SEAT HEATER SWITCH RH

-

-

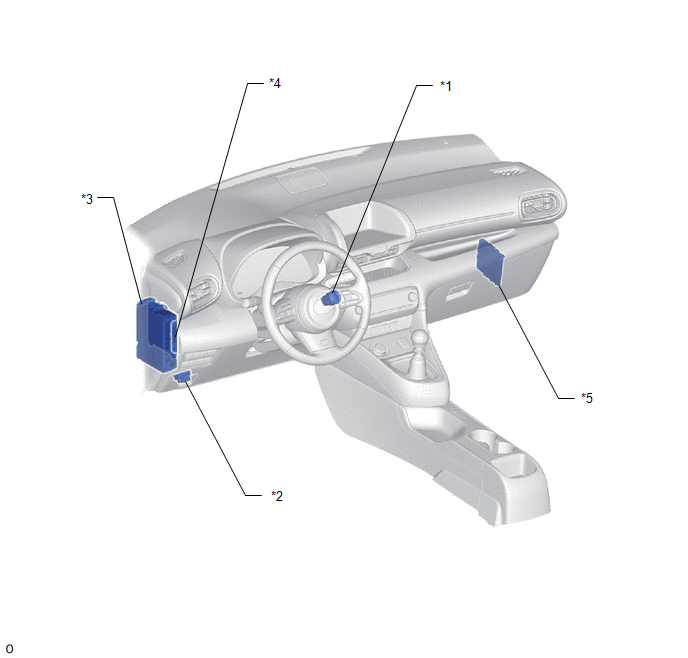

ILLUSTRATION

*1

PUSH START SWITCH

*2

DLC3

*3

POWER DISTRIBUTION BOX ASSEMBLY

- ECU-DCC NO. 2 FUSE

- ECU-IGR NO. 2 FUSE

- DOME FUSE

- DOME CUT FUSE

- IGR-NO. 2 RELAY

- DOME CUT RELAY

*4

MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

*5

CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

-

-

    Lighting System

    ..

    System Diagram

    S..
