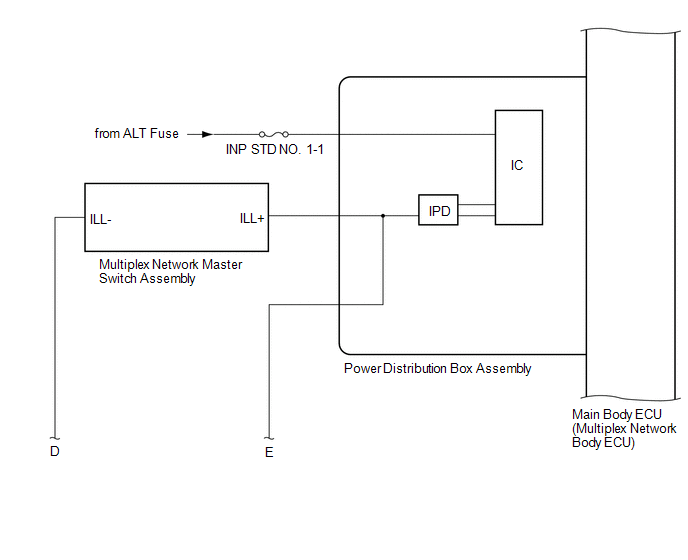

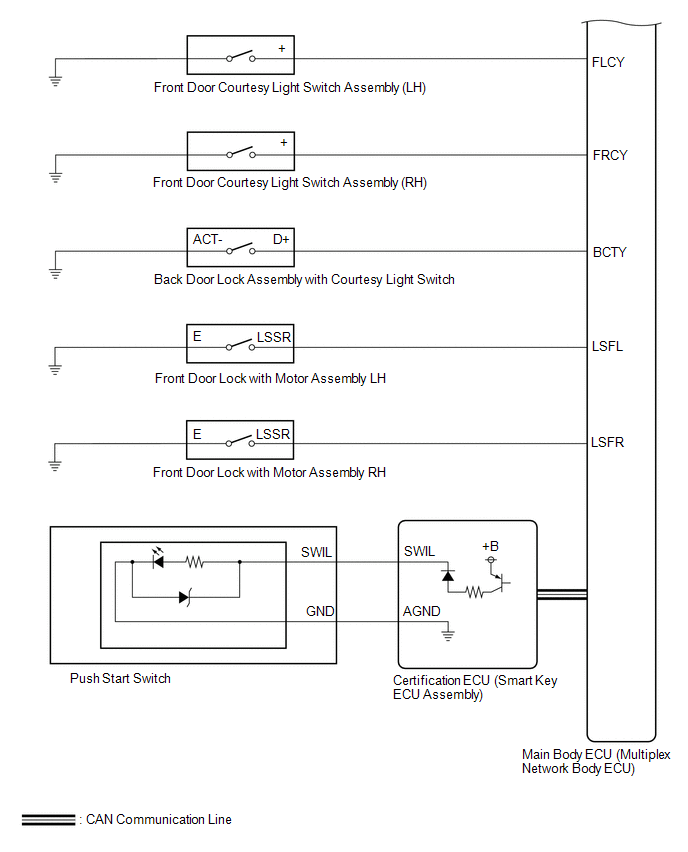

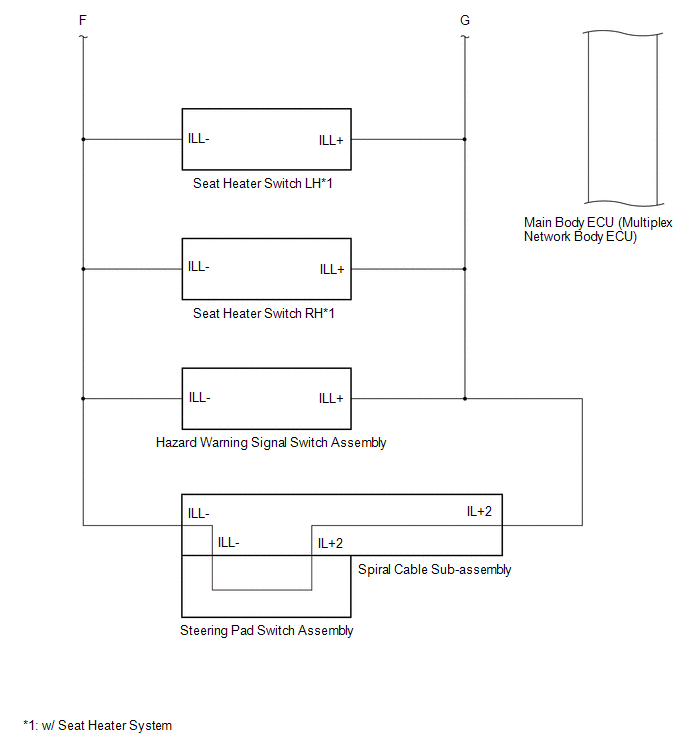

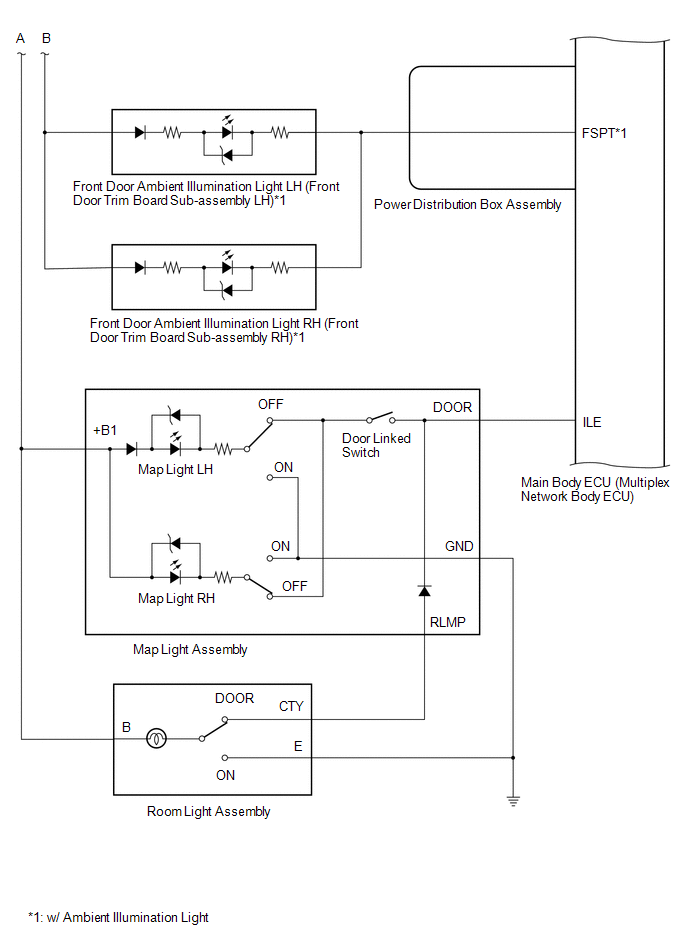

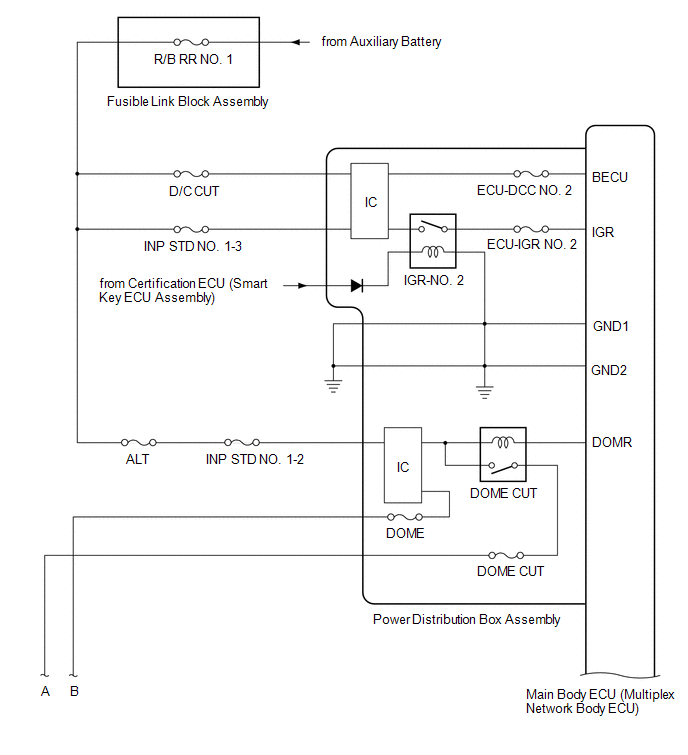

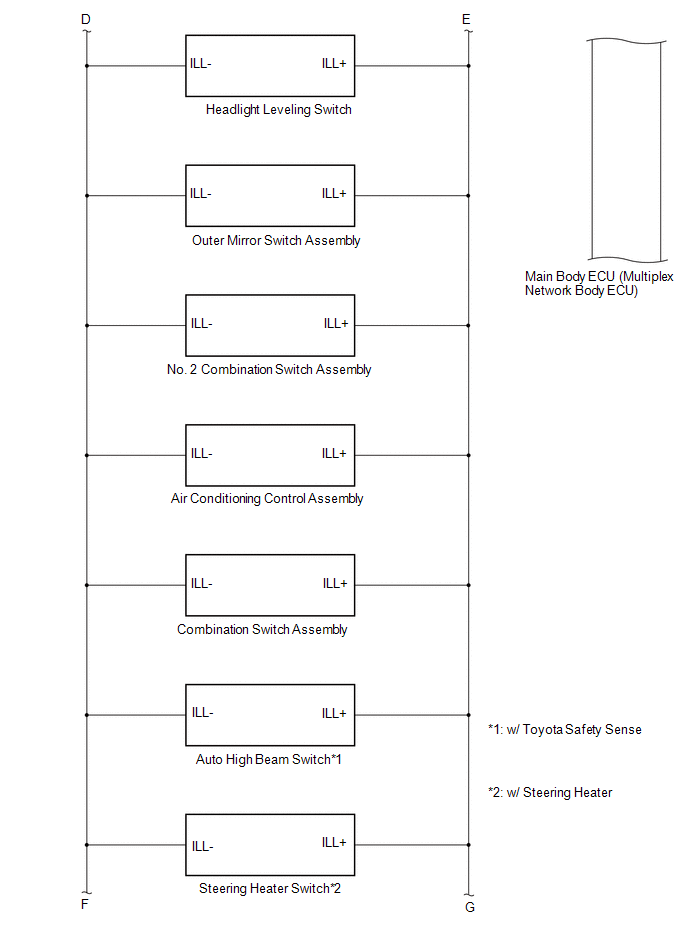

Toyota Yaris: Lighting System / System Diagram

Parts Location

PARTS LOCATION ILLUSTRATION *A w/ Ambient Illumination Light - - *1 FRONT DOOR AMBIENT ILLUMINATION LIGHT LH (FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH) *2 FRONT DOOR AMBIENT ILLUMINATION LIGHT RH (FRONT DOOR TRIM BOARD SUB-ASSEMBLY RH) *3 MAP LIGHT ASSEMBLY *4 ROOM LIGHT ASSEMBLY *5 NO...

System Description

SYSTEM DESCRIPTION ILLUMINATED ENTRY SYSTEM (a) The illuminated entry system has the following control functions: Control Outline Lights that Operate Actuation Area-linked When a registered key is brought within any vehicle exterior detection area around the doors, the lights that operate turn on...
