Toyota Yaris: Dynamic Radar Cruise Control System / Operation Check

Toyota Yaris XP210 (2020-2024) Reapir and Service Manual / Engine & Hybrid System / Cruise Control / Dynamic Radar Cruise Control System / Operation Check

OPERATION CHECK

INPUT SIGNAL CHECK

(a) Connect the GTS to the DLC3.

(b) Check the steering pad switch assembly using the Data List function of the GTS (cruise control main switch, -SET switch, +RES switch and CANCEL switch).

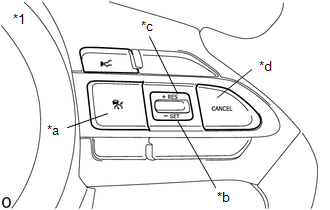

*1

Steering Pad Switch Assembly

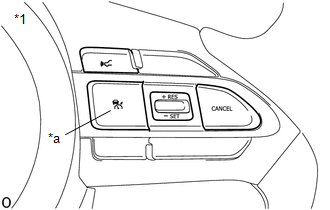

*a

Cruise Control Main Switch

*b

-SET Switch

*c

+RES Switch

*d

CANCEL Switch

Click here

INSPECT CRUISE CONTROL MAIN SWITCH

(a) Turn the ignition switch to ON.

(b) Turn the dynamic radar cruise control system on using the cruise control main switch.

*1

Steering Pad Switch Assembly

*a

Cruise Control Main Switch

(c) Check that the cruise control indicator (vehicle-to-vehicle distance control mode) in the combination meter assembly illuminates and "Radar Ready" is displayed on the multi-information display.

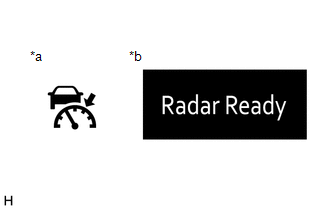

*a

Cruise Control Indicator

(Vehicle-to-vehicle Distance Control Mode)

*b

Multi-information Display

(d) Turn the dynamic radar cruise control system off using the cruise control main switch. Check that the cruise control indicator (vehicle-to-vehicle distance control mode) in the combination meter assembly and "Radar Ready" on the multi-information display turn off.

(e) Turn the ignition switch off with the cruise control indicator (vehicle-to-vehicle distance control mode) in the combination meter assembly illuminated and "Radar Ready" on the multi-information display displayed. Turn the ignition switch back to ON and check that the cruise control indicator (vehicle-to-vehicle distance control mode) in the combination meter assembly and "Radar Ready" on the multi-information display are turned off.

INSPECT MODE SELECT

(a) Turn the ignition switch to ON.

(b) Push and hold the cruise control main switch for 1.5 seconds or more with the dynamic radar cruise control system off to change to constant speed control mode.

*1

Steering Pad Switch Assembly

*a

Cruise Control Main Switch

NOTICE:

Do not push any other switches before pushing the cruise control main switch. If any other switches are pushed, turn the dynamic radar cruise control system off and repeat the above procedure.

(c) Check that the cruise control indicator (vehicle-to-vehicle distance control mode) in the combination meter assembly and "Radar Ready" on the multi-information display turn off and the cruise control indicator (constant speed control mode) illuminates.

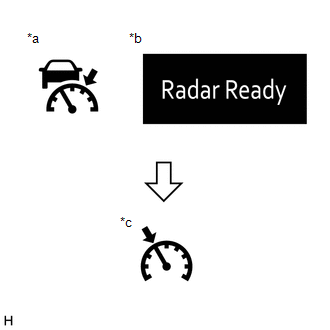

*a

Cruise Control Indicator

(Vehicle-to-vehicle Distance Control Mode)

*b

Multi-information Display

*c

Cruise Control Indicator

(Constant Speed Control Mode)

INSPECT VEHICLE-TO-VEHICLE DISTANCE CONTROL SWITCH

(a) Turn the ignition switch to ON.

(b) Turn the dynamic radar cruise control system on using the cruise control main switch.

*1

Steering Pad Switch Assembly

*a

Cruise Control Main Switch

HINT:

When in constant speed control mode, the vehicle-to-vehicle distance cannot be changed.

(c) Press the vehicle-to-vehicle distance control switch.

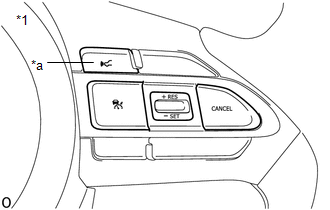

*1

Steering Pad Switch Assembly

*a

Vehicle-to-vehicle Distance Control Switch

(d) Check that the indicator of the vehicle-to-vehicle distance, which is shown on the multi-information display in the combination meter assembly changes from long to middle to short in that order.

HINT:

Long is automatically selected each time the ignition switch is turned to ON.

    Road Test

    ROAD TEST HINT: The dynamic radar cruise control system has 2 cruise control modes: constant speed control mode and vehicle-to-vehicle distance control mode...

    Problem Symptoms Table

    PROBLEM SYMPTOMS TABLE NOTICE: Before replacing the ECM, refer to Service Bulletin. When replacing the millimeter wave radar sensor assembly, always replace it with a new one...
