ON-VEHICLE INSPECTION

PROCEDURE

1. INSPECT BRAKE FLUID LEVEL IN RESERVOIR

(a) Check the fluid level.

HINT:

  • If the brake fluid level is lower than the MIN line, inspect for brake fluid leaks and brake pad wear. If necessary, refill the reservoir with brake fluid to the MAX line after repair or replacement.
  • The brake fluid level must always be adjusted to the MAX line.

Brake Fluid:

"TOYOTA GENUINE BRAKE FLUID DOT4, CLASS6"*, FMVSS No.116 DOT4 or SAE J1704LV*

*: If a fluid type with "TOYOTA GENUINE BRAKE FLUID DOT4, CLASS6", FMVSS No.116 DOT4 or SAE J1704LV is not available, fluid type with TOYOTA GENUINE BRAKE FLUID DOT3, FMVSS No.116 DOT3 or SAE J1703 may be used with no detriment to brake durability.

NOTICE:

If using a dropper to adjust the fluid amount, make sure that the dropper has not been used with mineral oils, water or deteriorated brake fluid. Sealed areas may deteriorate and lead to fluid leaks, or the fluid may deteriorate and lead to decreased efficiency.

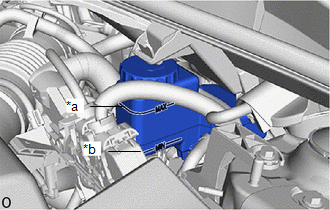

*a

MAX Line

*b

MIN Line

    Components

    COMPONENTS ILLUSTRATION *1 CENTER COWL TOP VENTILATOR LOUVER *2 BRAKE MASTER CYLINDER RESERVOIR FILLER CAP ASSEMBLY *3 HOOD TO COWL TOP SEAL - - ILLUSTRATION *1 FRONT DISC BRAKE BLEEDER PLUG *2 FRONT DISC BRAKE BLEEDER PLUG CAP *3 REAR DISC BRAKE BLEEDER PLUG *4 REAR DISC BRAKE BLEEDER PLUG CAP Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft...

    Bleeding

    BLEEDING CAUTION / NOTICE / HINT NOTICE: Move the shift lever to P and apply the parking brake before bleeding the brakes. Add brake fluid to keep the level between the MIN and MAX lines of the reservoir while bleeding the brakes...
