INSTALLATION

PROCEDURE

1. INSTALL ROOF ANTENNA ASSEMBLY

(a) When reusing the roof antenna assembly:

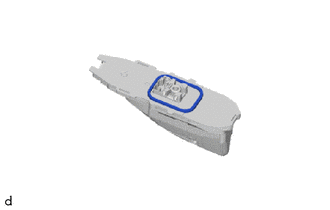

(1) Install a new seal.

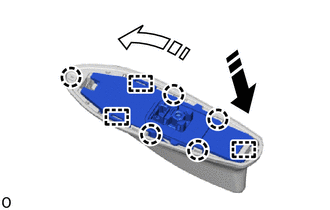

(b) Engage the guides and claws to install the roof antenna assembly to the antenna cover as shown in the illustration.

Install in this Direction (1)

Install in this Direction (2)

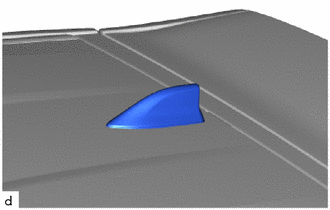

(c) Install the roof antenna assembly with antenna cover.

(d) Install a new holder with the bolt.

Torque:

9.5 N·m {97 kgf·cm, 84 in·lbf}

(e) Connect the connector.

2. INSTALL ROOF HEADLINING ASSEMBLY

Click here

    Removal
