Toyota Yaris: Rear Seat Assembly / Installation

INSTALLATION

CAUTION / NOTICE / HINT

CAUTION:

Wear protective gloves. Sharp areas on the parts may injure your hands.

PROCEDURE

1. INSTALL REAR SEAT CUSHION LOCK HOOK

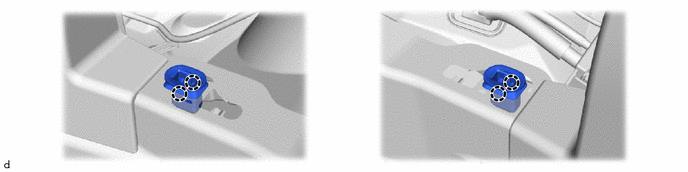

(a) Engage the claws to install 2 new rear seat cushion lock hooks.

2. INSTALL BENCH TYPE REAR SEAT CUSHION ASSEMBLY

(a) Place the bench type rear seat cushion assembly in the cabin.

NOTICE:

Be careful not to damage the vehicle body.

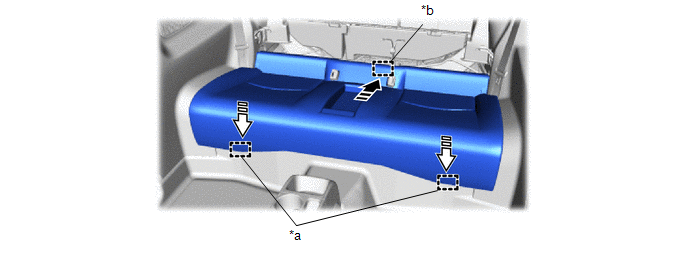

(b) Engage the rear seat cushion frame hook on the rear side of the bench type rear seat cushion assembly as shown in the illustration.

(c) Engage the rear seat cushion frame hooks on the front side of the bench type rear seat cushion assembly as shown in the illustration.

NOTICE:

Confirm that the bench type rear seat cushion assembly is securely installed.

*a	Rear Seat Cushion Frame Hook Front Side	*b	Rear Seat Cushion Frame Hook Rear Side
	Install in this Direction (1)		Install in this Direction (2)

3. INSTALL REAR SEATBACK ASSEMBLY LH

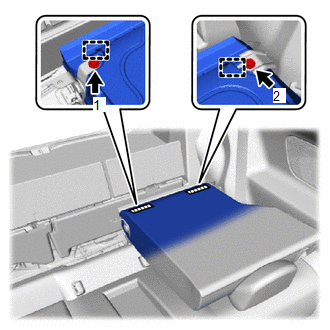

(a) Place the rear seatback assembly LH in the cabin.

Hook and Loop Fastener

NOTICE:

Be careful not to damage the vehicle body.

(b) Engage the guides to install the rear seatback assembly LH.

(c) Install the 2 bolts.

Torque:

36.8 N·m {375 kgf·cm, 27 ft·lbf}

NOTICE:

Tighten bolts in the order shown in the illustration.

(d) Engage the hook and loop fasteners.

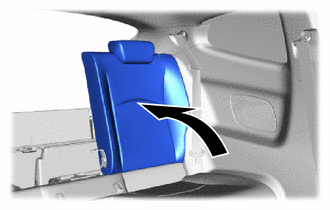

(e) Wake up the rear seatback assembly LH backward.

4. INSTALL REAR SEATBACK ASSEMBLY RH

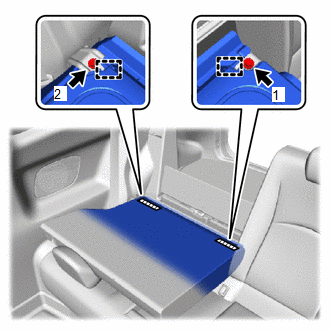

(a) Place the rear seatback assembly RH in the cabin.

NOTICE:

Be careful not to damage the vehicle body.

Hook and Loop Fastener

(b) Engage the guides to install the rear seatback assembly RH.

(c) Install the 2 bolts.

Torque:

36.8 N·m {375 kgf·cm, 27 ft·lbf}

NOTICE:

Tighten bolts in the order shown in the illustration.

(d) Engage the hook and loop fasteners.

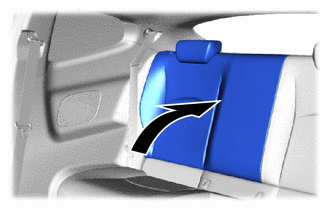

(e) Wake up the rear seatback assembly RH backward.
