Toyota Yaris: Clutch Unit / Components
COMPONENTS

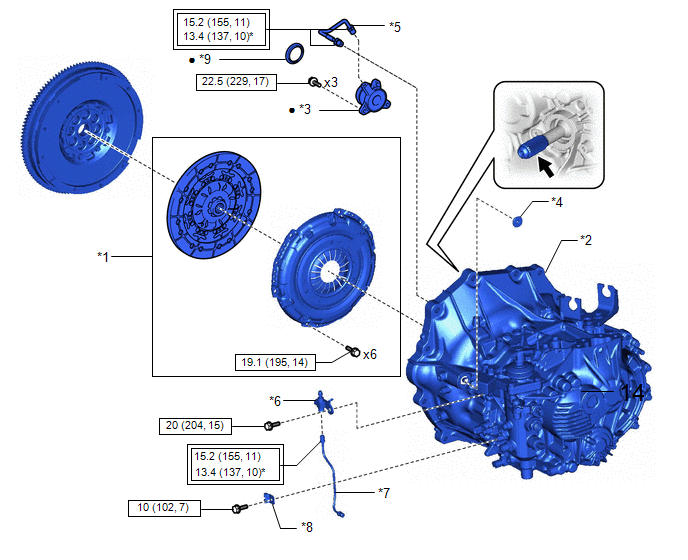

ILLUSTRATION
| *1 | COVER AND DISC CLUTCH SET | *2 | MANUAL TRANSAXLE ASSEMBLY |
| *3 | CLUTCH RELEASE CYLINDER WITH BEARING ASSEMBLY | *4 | CLUTCH TUBE BOOT |
| *5 | CLUTCH RELEASE CYLINDER TO BLEEDER TUBE | *6 | CLUTCH RELEASE BLEEDER SUB-ASSEMBLY |
| *7 | BLEEDER CLUTCH RELEASE TUBE | *8 | CLAMP |
| *9 | CLUTCH RELEASE BEARING PLATE | - | - |
 | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) |
 | N*m (kgf*cm, ft.*lbf): Specified torque |
| * | For use with union nut wrench | ● | Non-reusable part |
 | Clutch spline grease | ★ | Precoated part |
Clutch Unit
..
Removal
REMOVAL CAUTION / NOTICE / HINT The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during the cover and disc clutch set removal/installation are shown below...
