INSPECTION

PROCEDURE

1. INSPECT FOG LIGHT ASSEMBLY LH

(a) Check that the fog light assembly LH.

(1) Apply auxiliary battery voltage to the fog light assembly LH and check that the light comes on.

OK:

Condition

Specified Condition

A104-2 (B) - Auxiliary battery positive (+)

A104-1 (E) - Auxiliary battery negative (-)

Fog light assembly LH comes on

If the result is not as specified, replace the fog light assembly LH.

*a	Component without harness connected (Fog Light Assembly LH)

2. INSPECT FOG LIGHT ASSEMBLY RH

(a) Check that the fog light assembly RH.

(1) Apply auxiliary battery voltage to the fog light assembly RH and check that the light comes on.

OK:

Condition

Specified Condition

A105-2 (B) - Auxiliary battery positive (+)

A105-1 (E) - Auxiliary battery negative (-)

Fog light assembly RH comes on

If the result is not as specified, replace the fog light assembly RH.

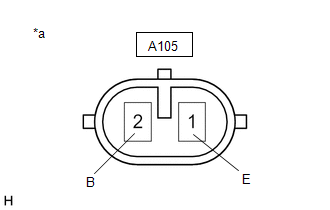

*a	Component without harness connected (Fog Light Assembly RH)

Removal

REMOVAL CAUTION / NOTICE / HINT HINT: Use the same procedure for the RH side and LH side. The following procedure is for the LH side. PROCEDURE 1...

Adjustment

ADJUSTMENT PROCEDURE 1. PREPARE VEHICLE FOR FOG LIGHT AIM ADJUSTMENT (a) Prepare the vehicle: Ensure that there is no damage or deformation to the vehicle body around the fog lights...
