Toyota Yaris: Lighting (ext) / High Mounted Stop Light Assembly

Toyota Yaris XP210 (2020-2025) Reapir and Service Manual / Vehicle Exterior / Lighting (ext) / High Mounted Stop Light Assembly

Components

COMPONENTS

ILLUSTRATION

*1

CENTER STOP LIGHT ASSEMBLY

-

-

Removal

REMOVAL

PROCEDURE

1. REMOVE REAR SPOILER ASSEMBLY

Click here

2. REMOVE CENTER STOP LIGHT ASSEMBLY

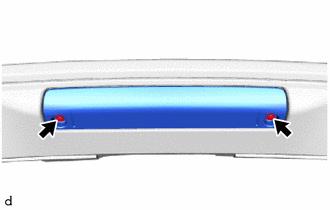

(a) Remove the 2 screws to remove the center stop light assembly.

(b) Disconnect the connector.

Inspection

INSPECTION

PROCEDURE

1. REMOVE CENTER STOP LIGHT ASSEMBLY

(a) Check that the center stop light assembly.

(1) Apply auxiliary battery voltage to the center stop light assembly and check that the light comes on.

OK:

Condition

Specified Condition

g1-2 (B2) - Auxiliary battery positive (+)

g1-1 (E1) - Auxiliary battery negative (-)

Center stop light assembly comes on

If the result is not as specified, replace the center stop light assembly.

*a

Component without harness connected

(Center Stop Light Assembly)

Installation

INSTALLATION

PROCEDURE

1. INSTALL CENTER STOP LIGHT ASSEMBLY

(a) Connect the connector.

(b) Install the center stop light assembly with the 2 screws.

2. INSTALL REAR SPOILER ASSEMBLY

Click here
