Toyota Yaris: Solar Sensor / Components

Toyota Yaris XP210 (2020-2026) Reapir and Service Manual / Vehicle Interior / Heating / Air Conditioning / Solar Sensor / Components

COMPONENTS

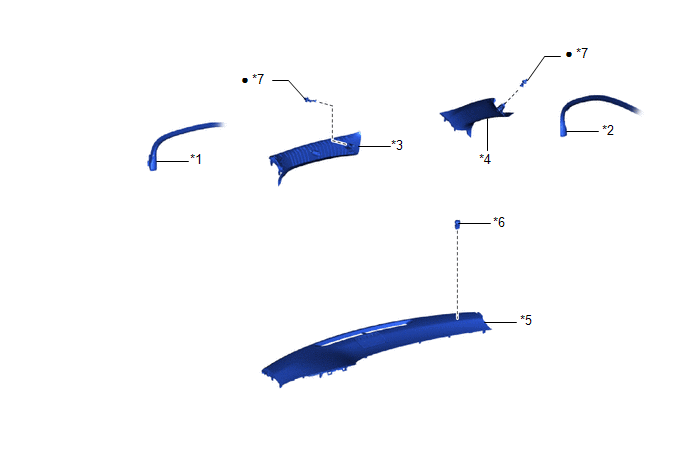

ILLUSTRATION

*1

NO. 1 ROOF HEADLINING MOULDING LH

*2

NO. 1 ROOF HEADLINING MOULDING RH

*3

FRONTPILLAR GARNISH LH

*4

FRONT PILLAR GARNISH RH

*5

INSTRUMENT MAIN PANEL

*6

AUTOMATIC LIGHT CONTROL SENSOR

*7

FRONT PILLAR GARNISH CLIP

-

-

Non-reusable part

-

-

    Solar Sensor

    ..

    On-vehicle Inspection

    ON-VEHICLE INSPECTION PROCEDURE 1. INSPECT AUTOMATIC LIGHT CONTROL SENSOR (a) Check the wire harness. (1) Disconnect the automatic light control sensor...
