Toyota Yaris: Front Shock Absorber / Disposal

Toyota Yaris XP210 (2020-2025) Reapir and Service Manual / Suspension / Front Suspension / Front Shock Absorber / Disposal

DISPOSAL

CAUTION / NOTICE / HINT

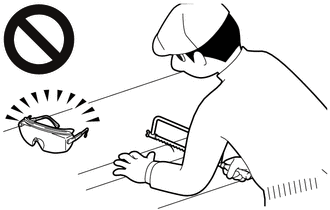

CAUTION:

Always use a cloth to prevent shards of metal from flying about due to the release of pressurized gas.
Always wear safety glasses.

HINT:

The gas is colorless, odorless and non-poisonous.

PROCEDURE

1. DISPOSE OF FRONT SHOCK ABSORBER ASSEMBLY

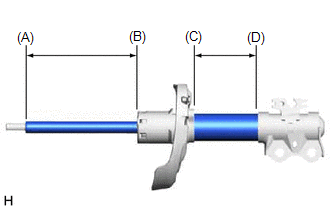

(a) Place the front shock absorber horizontally with the piston rod extended, and using a hacksaw, make a hole between (A) and (B), and between (C) and (D) shown in the illustration to discharge the gas inside.
