Toyota Yaris: Roof Headlining / Components
COMPONENTS
ILLUSTRATION

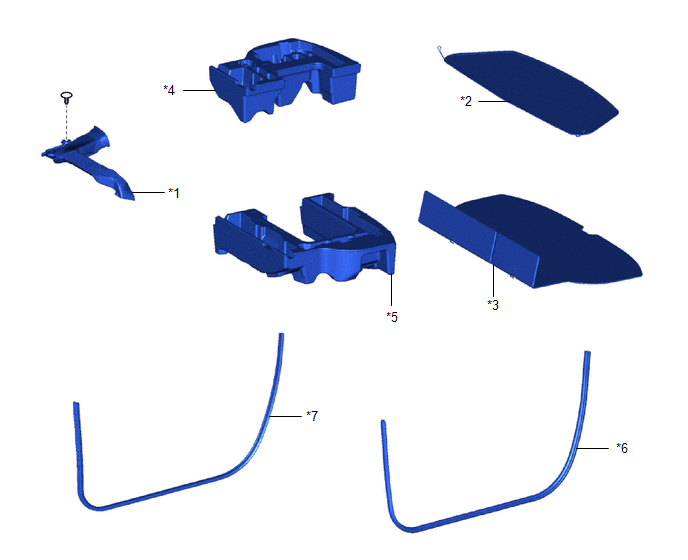

| *1 | NO. 2 HEATER TO REGISTER DUCT SUB-ASSEMBLY | *2 | PACKAGE TRAY TRIM PANEL ASSEMBLY |
| *3 | DECK BOARD ASSEMBLY | *4 | DECK FLOOR BOX RH |
| *5 | DECK FLOOR BOX LH | *6 | FRONT DOOR OPENING TRIM WEATHERSTRIP LH |
| *7 | FRONT DOOR OPENING TRIM WEATHERSTRIP RH | - | - |
ILLUSTRATION

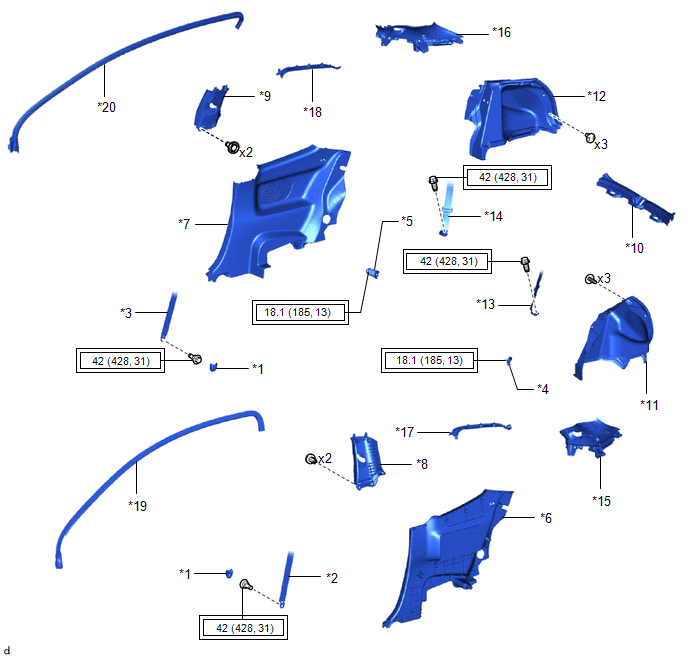

| *1 | LAP BELT OUTER ANCHOR COVER | *2 | FRONT SEAT OUTER BELT ASSEMBLY LH |
| *3 | FRONT SEAT OUTER BELT ASSEMBLY RH | *4 | REAR SEATBACK HINGE SUB-ASSEMBLY LH |
| *5 | REAR SEATBACK HINGE SUB-ASSEMBLY RH | *6 | QUARTER TRIM PANEL ASSEMBLY LH |
| *7 | QUARTER TRIM PANEL ASSEMBLY RH | *8 | CENTER PILLAR UPPER GARNISH LH |
| *9 | CENTER PILLAR UPPER GARNISH RH | *10 | DECK TRIM REAR COVER |
| *11 | DECK TRIM SIDE PANEL ASSEMBLY LH | *12 | DECK TRIM SIDE PANEL ASSEMBLY RH |
| *13 | REAR SEAT OUTER BELT ASSEMBLY LH | *14 | REAR SEAT OUTER BELT ASSEMBLY RH |
| *15 | INNER ROOF SIDE GARNISH LH | *16 | INNER ROOF SIDE GARNISH RH |
| *17 | ROOF SIDE INNER GARNISH LH | *18 | ROOF SIDE INNER GARNISH RH |
| *19 | NO. 1 ROOF HEADLINING MOULDING LH | *20 | NO. 1 ROOF HEADLINING MOULDING RH |
 | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | - | - |
ILLUSTRATION

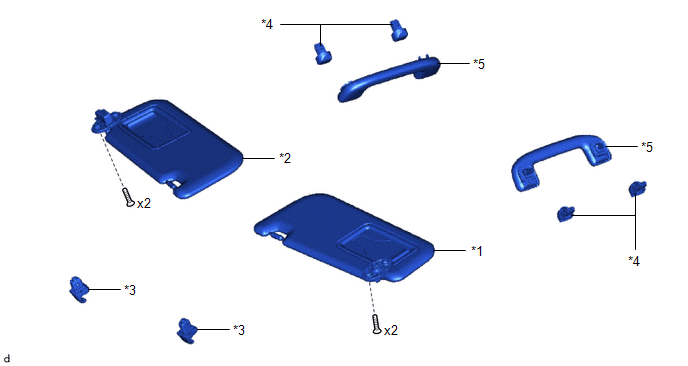

| *1 | VISOR ASSEMBLY LH | *2 | VISOR ASSEMBLY RH |
| *3 | VISOR HOLDER | *4 | ASSIST GRIP COVER |
| *5 | ASSIST GRIP SUB-ASSEMBLY | - | - |
ILLUSTRATION
| *A | w/ Pre-collision System | *B | w/o Pre-collision System |

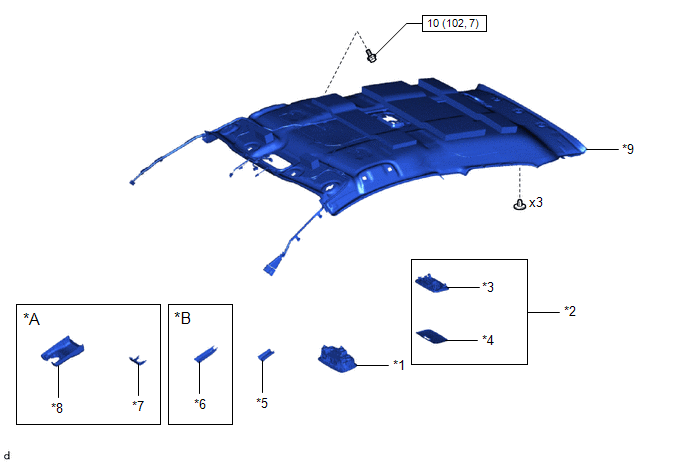

| *1 | MAP LIGHT ASSEMBLY | *2 | NO. 1 ROOM LIGHT ASSEMBLY |
| *3 | ROOM LIGHT HOUSING | *4 | ROOM LIGHT LENS |
| *5 | RAIN SENSOR COVER | *6 | INNER REAR VIEW MIRROR STAY HOLDER COVER |
| *7 | NO. 2 FORWARD RECOGNITION COVER | *8 | NO. 1 FORWARD RECOGNITION COVER |
| *9 | ROOF HEADLINING | - | - |
 | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION
| *A | w/ Active Noise Control System | - | - |

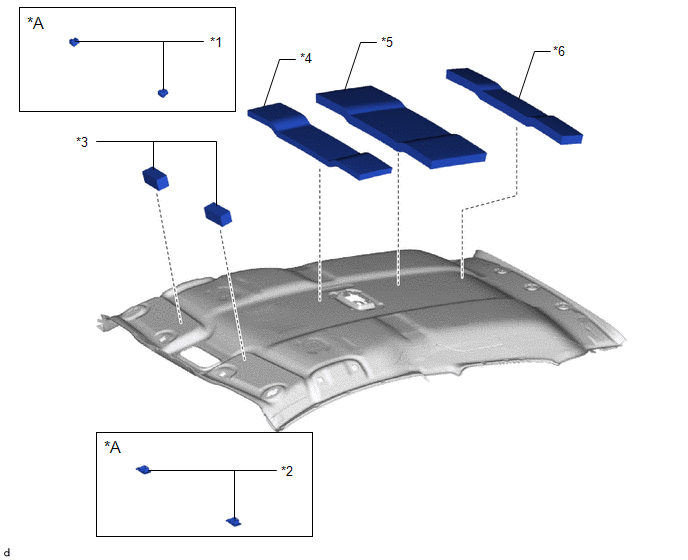

| *1 | ACTIVE NOISE CONTROL MICROPHONE | *2 | ROOF HEADLINING HOLDER COVER |
| *3 | NO. 4 ROOF SILENCER PAD | *4 | NO. 1 ROOF SILENCER PAD |
| *5 | NO. 2 ROOF SILENCER PAD | *6 | NO. 3 ROOF SILENCER PAD |
ILLUSTRATION
| *A | w/ Pre-collision System | *B | w/o Pre-collision System |

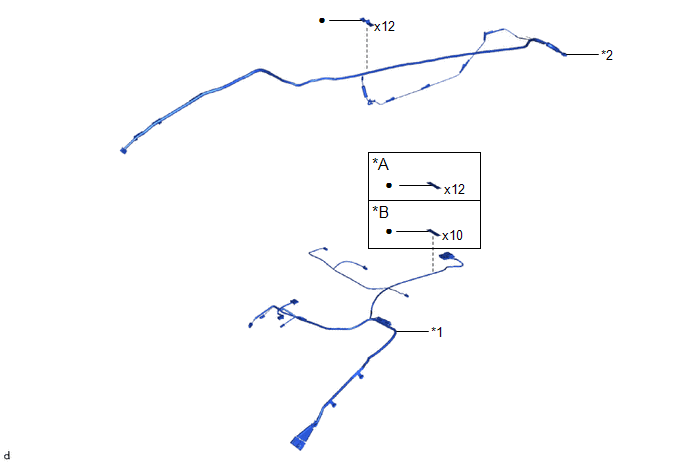

| *1 | NO. 1 ROOF WIRE | *2 | NO. 2 ANTENNA CORD SUB-ASSEMBLY |
| ● | Non-reusable part | - | - |
