DISASSEMBLY

PROCEDURE

1. REMOVE ACTIVE NOISE CONTROL MICROPHONE (w/ Active Noise Control System)

Click here

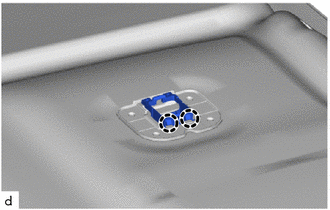

2. REMOVE ROOF HEADLINING HOLDER COVER (w/ Active Noise Control System)

HINT:

Use the same procedure for the opposite side.

(a) Disengage the claws to remove the roof headlining holder cover.

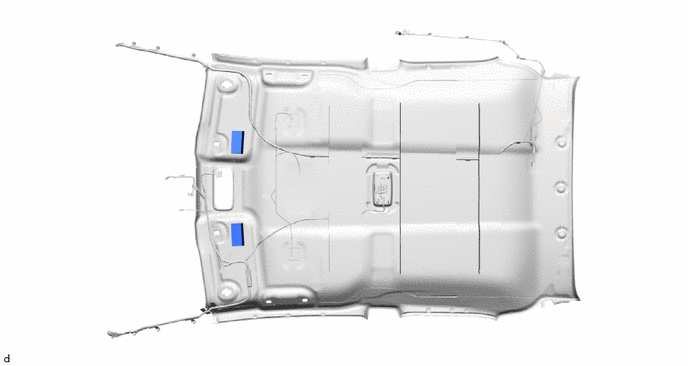

3. REMOVE NO. 4 ROOF SILENCER PAD

(a) Remove the 2 No. 4 roof silencer pads.

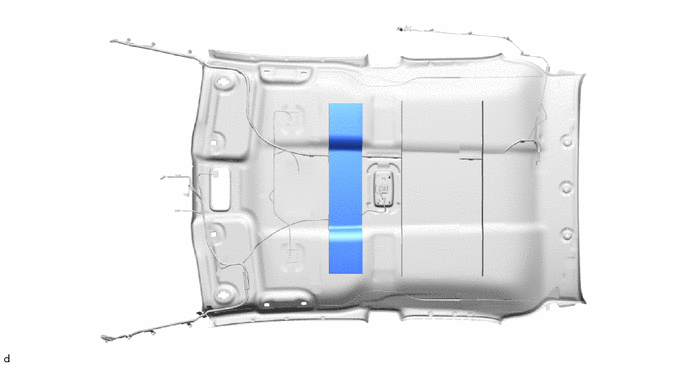

4. REMOVE NO. 1 ROOF SILENCER PAD

(a) Remove the No. 1 roof silencer pad.

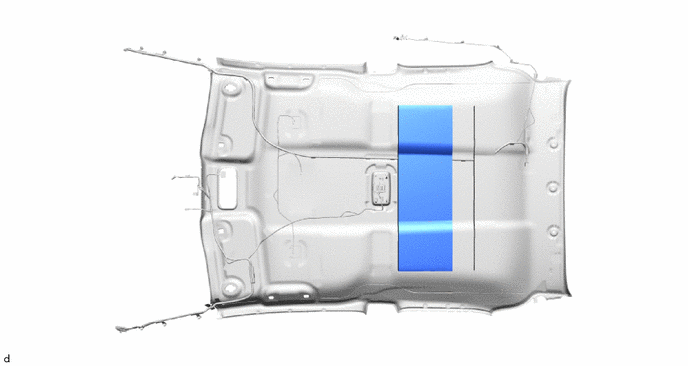

5. REMOVE NO. 2 ROOF SILENCER PAD

(a) Remove the No. 2 roof silencer pad.

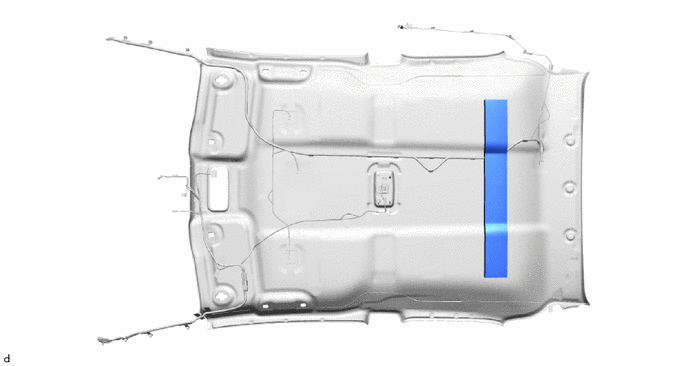

6. REMOVE NO. 3 ROOF SILENCER PAD

(a) Remove the No. 3 roof silencer pad.

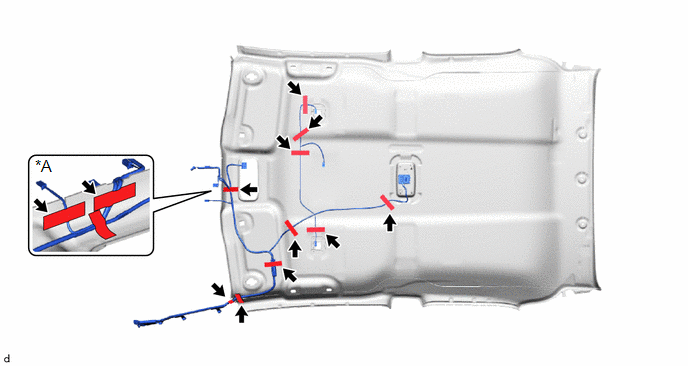

7. REMOVE NO. 1 ROOF WIRE

(a) Peel off the pieces of each adhesive tape to remove the No. 1 roof wire.

w/ Pre-collision System

8. REMOVE NO. 2 ANTENNA CORD SUB-ASSEMBLY

Click here
