Toyota Yaris: Back Door / Disassembly
DISASSEMBLY
CAUTION / NOTICE / HINT
PROCEDURE
1. REMOVE BACK DOOR TRIM BOARD
| (a) Remove the 11 clips and back door trim board. |
|
2. REMOVE BACK DOOR TRIM COVER
| (a) Disengage the clips to remove the back door trim cover. |
|
3. REMOVE BACK DOOR LOCK ASSEMBLY WITH COURTESY LIGHT SWITCH
Click here
4. REMOVE DOOR PULL HANDLE

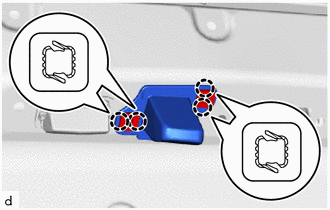

| (a) Using a moulding remover A, disengage the claws to remove the door pull handle. |
|
5. REMOVE BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY
Click here
6. REMOVE BACK DOOR OPENER SWITCH ASSEMBLY
Click here
7. REMOVE NO. 2 BACK DOOR GARNISH RETAINER

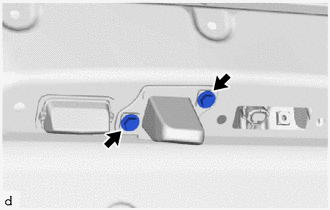

| (a) Remove the 2 screws. |
|
| (b) Disengage the claws to remove the No. 2 back door garnish retainer. |
|
8. REMOVE REAR SPOILER ASSEMBLY
Click here
9. REMOVE NO. 1 BACK DOOR PANEL PROTECTOR
| (a) Remove the No. 1 back door panel protector. NOTICE: Remove any remaining double-sided tape from the back door. HINT: Use the same procedure as for the opposite side. |
|
10. REMOVE BACK DOOR PANEL CUSHION

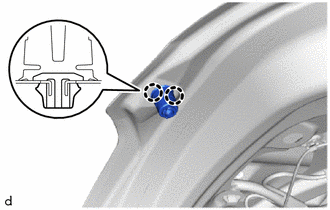

| (a) Disengage the claws to remove the back door panel cushion. HINT: Use the same procedure as for the opposite side. |
|
11. REMOVE LICENSE PLATE LIGHT ASSEMBLY
Click here
12. REMOVE NO. 2 BACK DOOR WIRE

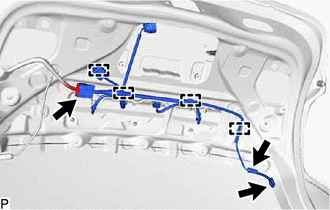

| (a) Disconnect the 3 connectors. |
|
(b) Disengage the clamps to remove the No. 2 back door wire.
13. REMOVE BACK DOOR DUST PROOF SEAL

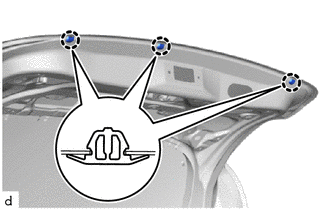

| (a) Disengage the claw to remove the 3 back door dust proof seals. |
|
Components
COMPONENTS ILLUSTRATION
*1 BACK DOOR TRIM BOARD *2 BACK DOOR TRIM COVER ILLUSTRATION
*1 BACK DOOR LOCK ASSEMBLY WITH COURTESY LIGHT SWITCH *2 DOOR PULL HANDLE *3 BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY *4 BACK DOOR OPENER SWITCH ASSEMBLY *5 NO...
Adjustment
ADJUSTMENT CAUTION / NOTICE / HINT HINT:
Centering bolts are used to install the door hinges to the door. The door cannot be adjusted with the centering bolts installed...
