COMPONENTS

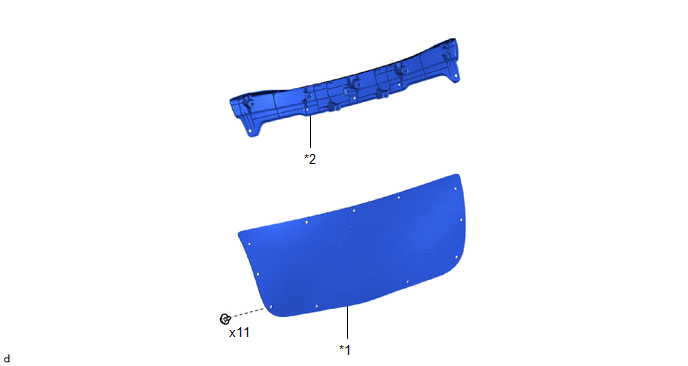

ILLUSTRATION

*1

BACK DOOR TRIM BOARD

*2

BACK DOOR TRIM COVER

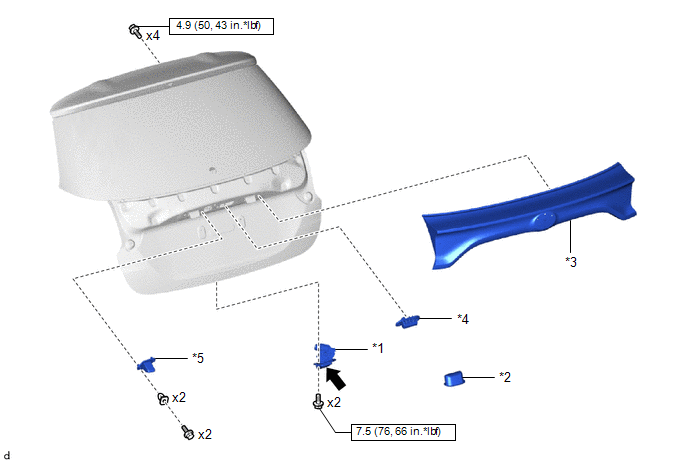

ILLUSTRATION

*1

BACK DOOR LOCK ASSEMBLY WITH COURTESY LIGHT SWITCH

*2

DOOR PULL HANDLE

*3

BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY

*4

BACK DOOR OPENER SWITCH ASSEMBLY

*5

NO. 2 BACK DOOR GARNISH RETAINER

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

MP grease

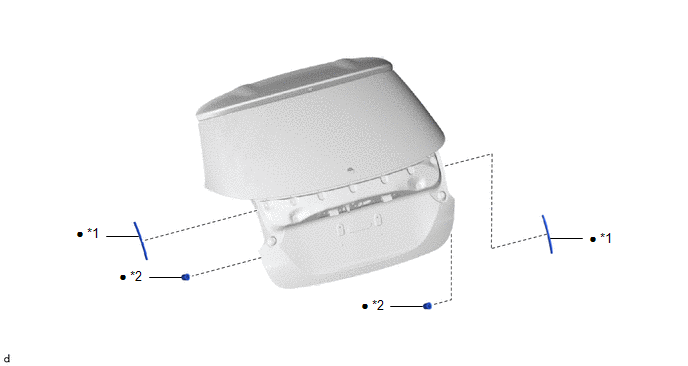

ILLUSTRATION

*1

NO. 1 BACK DOOR PANEL PROTECTOR

*2

BACK DOOR PANEL CUSHION

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part

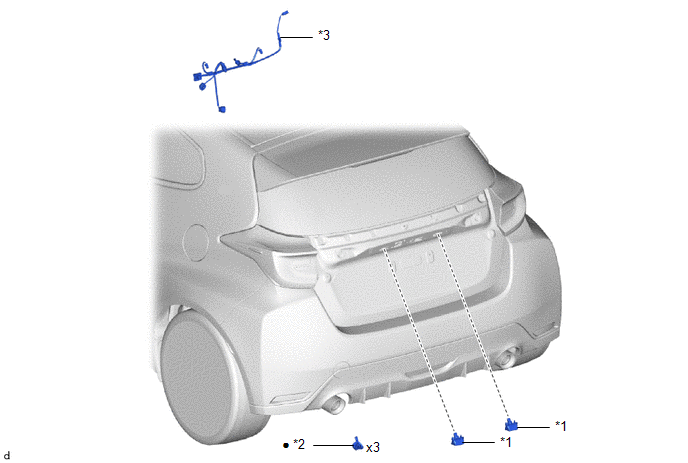

ILLUSTRATION

*1

LICENSE PLATE LIGHT ASSEMBLY

*2

BACK DOOR DUST PROOF SEAL

*3

NO. 2 BACK DOOR WIRE

-

-

●

Non-reusable part

-

-

    Back Door

    ..

    Disassembly

    DISASSEMBLY CAUTION / NOTICE / HINT PROCEDURE 1. REMOVE BACK DOOR TRIM BOARD (a) Remove the 11 clips and back door trim board. 2. REMOVE BACK DOOR TRIM COVER (a) Disengage the clips to remove the back door trim cover...
