DISASSEMBLY

CAUTION / NOTICE / HINT

NOTICE:

Do not disconnect the tube shown in the illustration when disassembling the fuel suction tube with pump and gauge assembly. Doing so will cause reassembly of the fuel suction tube with pump and gauge assembly to be impossible as the tube is pressed into the fuel suction plate sub-assembly.

Click here

PROCEDURE

1. REMOVE FUEL SENDER GAUGE ASSEMBLY

Click here

2. REMOVE FUEL PUMP

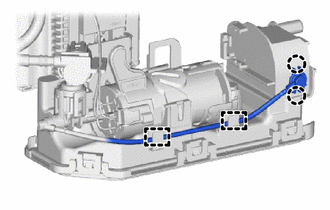

(a) Detach the 2 claws and 2 clamps and disconnect the fuel suction tube from the fuel sub-tank sub-assembly.

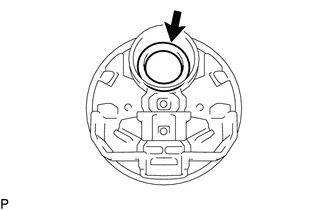

(b) Remove the O-ring from the fuel sub-tank sub-assembly.

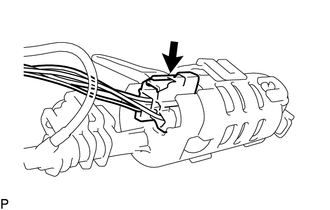

(d) Disconnect the connector from the fuel pump.

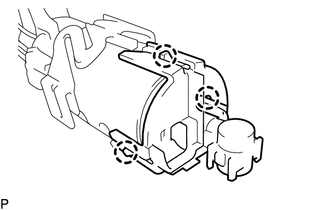

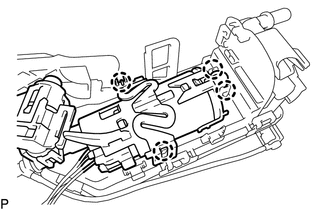

(e) Detach the 3 claws and remove the No. 1 cap from the sub-assembly support.

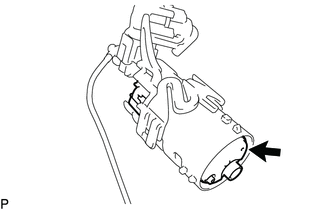

(f) Remove the fuel pump from the sub-assembly support.

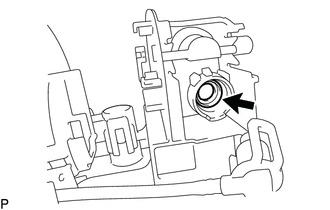

(g) Remove the O-ring from the fuel pump.
