Components

COMPONENTS

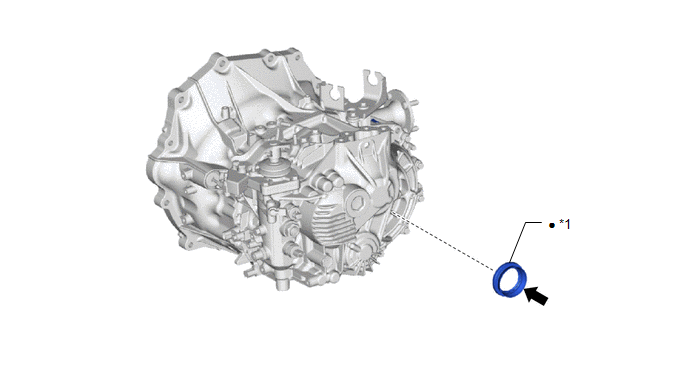

ILLUSTRATION

*1	FRONT DRIVE SHAFT OIL SEAL LH	-	-
●	Non-reusable part		MP grease

Replacement

REPLACEMENT

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during the front drive shaft oil seal LH removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Front wheel alignment adjustment	ECU Data Initialization	Active torque split AWD system
Front wheel alignment adjustment	Calibration	DTCs are stored Slip indicator light illuminates VSC disabled or malfunctions

PROCEDURE

1. REMOVE FRONT DRIVE SHAFT ASSEMBLY LH

Click here

2. REMOVE FRONT DRIVE SHAFT OIL SEAL LH

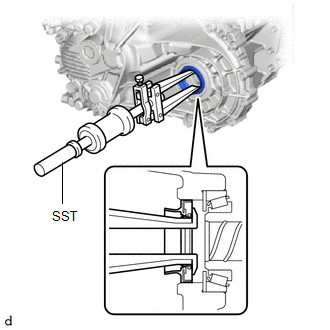

(a) Using SST, remove the front drive shaft oil seal LH from the manual transmission case.

SST: 09308-00010

NOTICE:

Do not damage the manual transmission case.

3. INSTALL FRONT DRIVE SHAFT OIL SEAL LH

(a) Coat the lip of a new front drive shaft oil seal LH with MP grease.

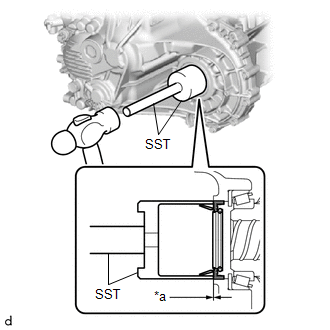

(b) Using SST and a hammer, install the front drive shaft oil seal LH to the manual transmission case.

*a	-0.5 mm to 0.5 mm (-0.0197 to 0.0197 in.)

SST: 09649-17010

SST: 09950-70010

09951-07200

Standard Depth:

-0.5 mm to 0.5 mm (-0.0197 to 0.0197 in.)

NOTICE:

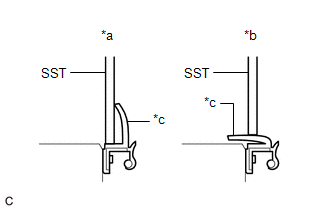

Make sure that the outer lip of the front drive shaft oil seal LH is not pinched by SST.

*a

Correct

*b

Incorrect

*c

Outer Lip
Do not allow foreign matter to attach to the inner lip and outer lip of the front drive shaft oil seal LH.
Do not install the front drive shaft oil seal LH at an angle.
Do not remove the grease from the inner lip and outer lip of the front drive shaft oil seal LH.

4. INSTALL FRONT DRIVE SHAFT ASSEMBLY LH

Click here

Reassembly
