Toyota Yaris: Specifications / Customizable Features

Toyota Yaris XP210 (2020-2024) Owner's Manual / Specifications / Customizable Features

The following customizable features can be set or changed by your Toyota dealer. Consult your Toyota dealer for details.

Additionally, some of the customizable features can be changed by the customer depending on the feature.

Customizable features which can be changed differ depending on the market and specification.

Settings Change Method

  1. Settings can be changed by operating the center display screen.

    A: Refer to Settings.

    B: Refer to Fuel Economy Monitor.

  2. Settings can be changed by operating the vehicle switches.

    C: Refer to Stopping The Low Speed Pre-Collision System Opera- tion.

    D: Refer to Auto Lock/Unlock Function.

    E: Refer to Smart Key.

    F: Refer to Locking, Unlocking with Request Switch (With the advanced keyless function).

  3. Settings can be changed by your Toyota dealer.

Safety

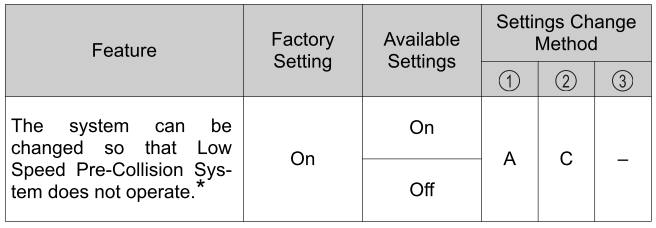

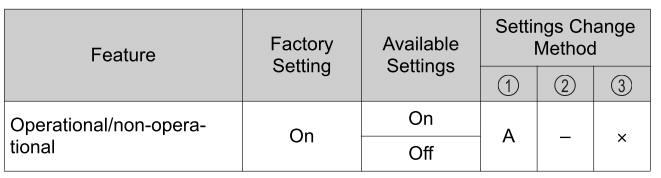

  • Low Speed Pre-Collision System

    Toyota Yaris. Customizable Features

    *: Though these systems can be turned Off, doing so will defeat the purpose of the system and Toyota recommends that these systems remain On.

Vehicle

  • Power Door locks

    Toyota Yaris. Customizable Features

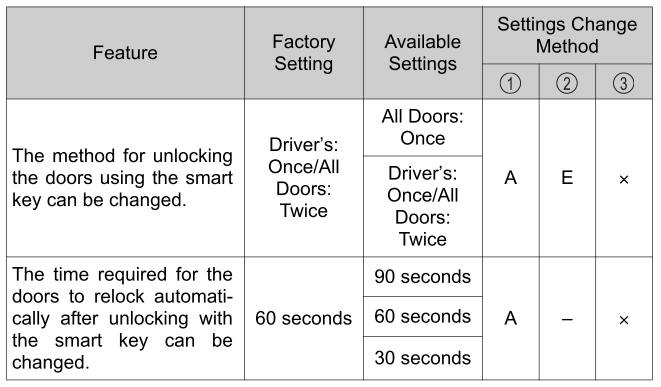

  • Keyless entry system

    Toyota Yaris. Customizable Features

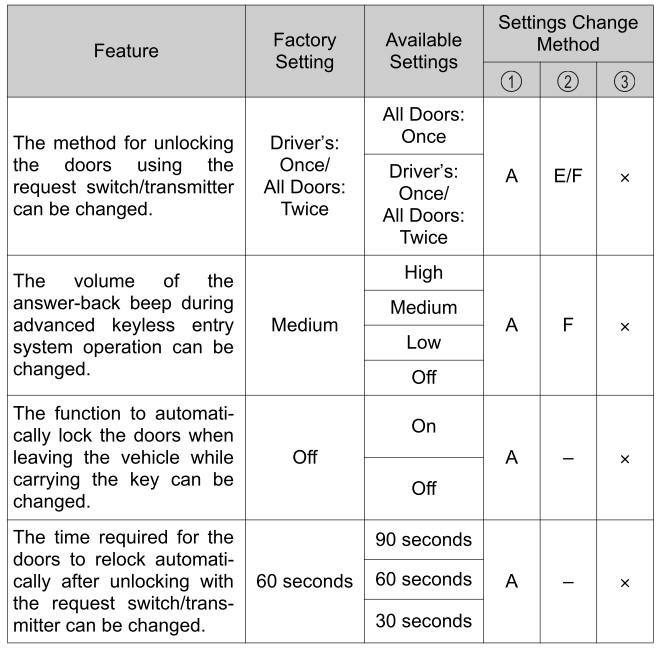

  • Advanced keyless entry system

    Toyota Yaris. Customizable Features

  • Illuminated entry system

    Toyota Yaris. Customizable Features

  • Auto-wiper control

    Toyota Yaris. Customizable Features

    *: If the auto-wiper control is set to Off, the wiper lever position is set to intermittent operation.

  • Daytime running lights

    Toyota Yaris. Customizable Features

  • Auto-light control

    Toyota Yaris. Customizable Features

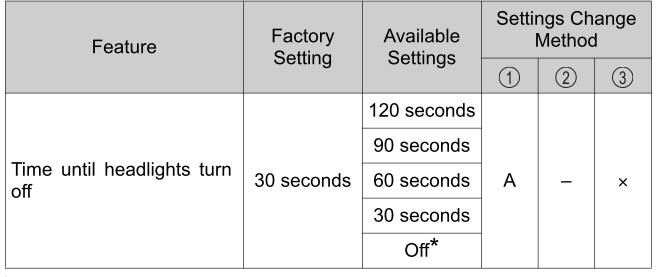

  • Auto headlight off

    Toyota Yaris. Customizable Features

    *: When set to Off, the lights-on reminder is operable.

  • Lights-on reminder*

    Toyota Yaris. Customizable Features

    *: The setting of the lights-on reminder can be changed with the time setting of auto headlight off function set to Off. Refer to Lights-On Reminder.

  • Turn indicator

    Toyota Yaris. Customizable Features

  • Three-flash turn signal

    Toyota Yaris. Customizable Features

  • System

    Language

    Toyota Yaris. Customizable Features

    *: Available only in display from the center display.

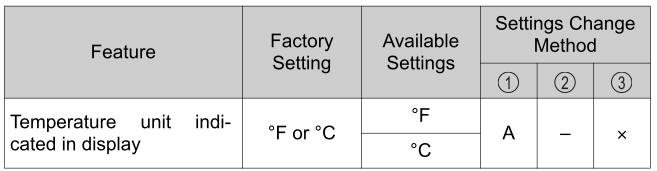

  • Temperature unit

    Toyota Yaris. Customizable Features

  • Distance unit

    Toyota Yaris. Customizable Features

Fuel Economy Monitor

  • Ending display

    Toyota Yaris. Customizable Features

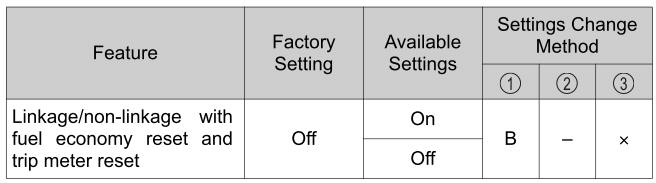

  • Fuel economy resetting procedure

    Toyota Yaris. Customizable Features
