Toyota Yaris: Manual Transaxle Unit / Components
COMPONENTS
ILLUSTRATION

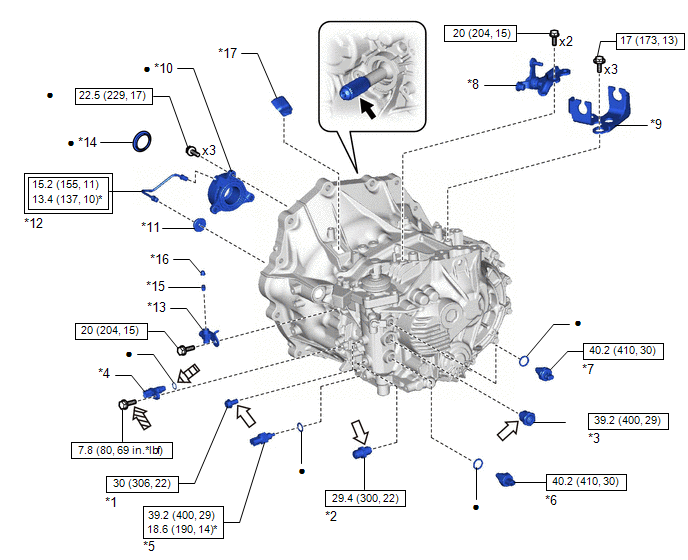

| *1 | SHIFT GATE PIN | *2 | NO. 2 LOCK BALL ASSEMBLY |
| *3 | NO. 1 LOCK BALL ASSEMBLY | *4 | TRANSMISSION REVOLUTION SENSOR |
| *5 | TEMPERATURE SENSOR | *6 | NEUTRAL POSITION SWITCH |
| *7 | BACK-UP LAMP SWITCH ASSEMBLY | *8 | SELECTING BELL CRANK ASSEMBLY |
| *9 | CONTROL CABLE BRACKET | *10 | CLUTCH RELEASE CYLINDER WITH BEARING ASSEMBLY |
| *11 | CLUTCH TUBE BOOT | *12 | BLEEDER CLUTCH RELEASE TUBE |
| *13 | CLUTCH RELEASE BLEEDER SUB-ASSEMBLY | *14 | CLUTCH RELEASE BEARING PLATE |
| *15 | RELEASE CYLINDER BLEEDER PLUG | *16 | RELEASE CYLINDER BLEEDER PLUG CAP |
| *17 | NO. 1 CLUTCH HOUSING COVER | - | - |
 | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) |
 | N*m (kgf*cm, ft.*lbf): Specified torque |
| * | For use with SST and union nut wrench | ● | Non-reusable part |
 | Clutch spline grease |
 | Adhesive 1344 |
 | Adhesive 1324 |
 | Gear Oil |
| ★ | Precoated part | - | - |
ILLUSTRATION
| *1 | REVERSE IDLER GEAR SHAFT BOLT | *2 | SHIFT DETENT BALL |
| *3 | MANUAL TRANSMISSION CASE PLUG | *4 | SHIFT ARM PIVOT O-RING |
| *5 | SHIFT AND SELECT LEVER SHAFT STRAIGHT PIN | *6 | MANUAL TRANSMISSION FILLER PLUG |
| *7 | MANUAL TRANSMISSION DRAIN PLUG | *8 | SHIFT AND SELECT LEVER ASSEMBLY |
| *9 | DETENT BALL PLUG | *10 | SPRING |
| *11 | SHIFT DETENT BALL COMPRESSION SPRING | *12 | SHIFT DETENT BALL COMPRESSION SPRING SEAT |
 | N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
 | MP grease |
 | Adhesive 1344 |
| ★ | Precoated part | - | - |
ILLUSTRATION
| *1 | REVERSE IDLER GEAR | *2 | REVERSE SHIFT FORK SHAFT |
| *3 | SHIFT ARM | *4 | NO. 3 GEAR SHIFT HEAD |
| *5 | NO. 5 GEAR SHIFT FORK SHAFT | *6 | 3RD AND 4TH SHIFT FORK SHAFT |
| *7 | TRANSMISSION OIL SEPARATOR | *8 | NO. 1 OIL RECEIVER PIPE |
| *9 | MANUAL TRANSMISSION CASE | *10 | NEEDLE ROLLER BEARING |
| *11 | NO. 2 GEAR SHIFT HEAD | *12 | REVERSE IDLER GEAR SHAFT |
| *13 | REVERSE IDLER THRUST WASHER | *14 | E-RING |
| *15 | SHIFT ARM PIVOT | *16 | SLOTTED SPRING PIN |
 | N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
 | MP grease |
 | Adhesive 1344 |
| ★ | Precoated part | - | - |
ILLUSTRATION

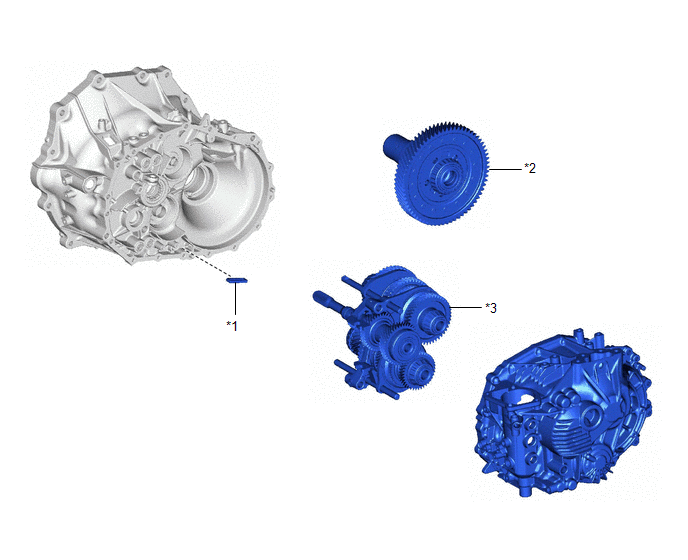

| *1 | TRANSMISSION MAGNET | *2 | DIFFERENTIAL GEAR ASSEMBLY |
| *3 | INPUT SHAFT, NO. 1 OUTPUT SHAFT AND NO. 2 OUTPUT SHAFT | - | - |
ILLUSTRATION

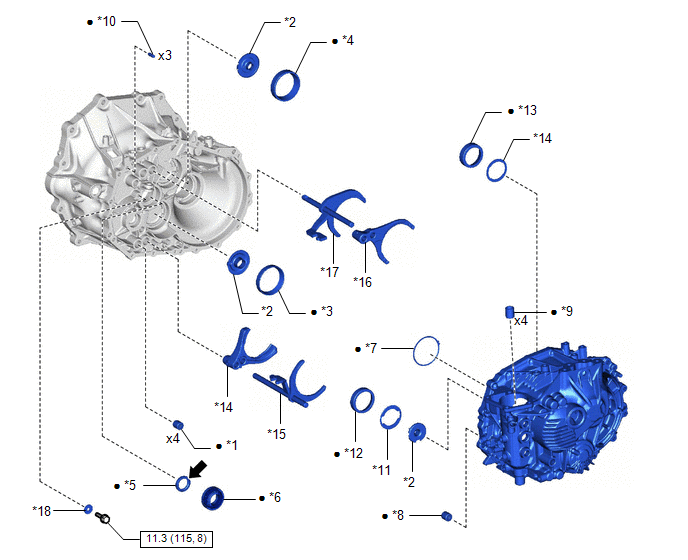

| *1 | SHIFT FORK SHAFT BEARING | *2 | OUTPUT SHAFT COVER |
| *3 | NO. 2 OUTPUT SHAFT FRONT BEARING | *4 | OUTPUT SHAFT FRONT BEARING |
| *5 | FRONT TRANSAXLE CASE OIL SEAL | *6 | INPUT SHAFT FRONT BEARING |
| *7 | INPUT SHAFT REAR BEARING SHAFT SNAP RING | *8 | SHIFT AND SELECT LEVER SHAFT NEEDLE ROLLER BEARING |
| *9 | SHIFT FORK SHAFT BEARING | *10 | MANUAL TRANSMISSION CASE STRAIGHT PIN |
| *11 | OUTPUT SHAFT REAR BEARING SHIM | *12 | NO. 2 OUTPUT SHAFT REAR BEARING |
| *13 | OUTPUT SHAFT REAR BEARING | *14 | REVERSE SHIFT FORK |
| *15 | NO. 3 GEAR SHIFT FORK | *16 | NO. 2 GEAR SHIFT FORK |
| *17 | NO. 1 GEAR SHIFT FORK | *18 | BEARING LOCK PLATE |
 | N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
 | MP grease | - | - |
ILLUSTRATION
| *1 | FRONT DRIVE SHAFT OIL SEAL LH | *2 | FRONT DIFFERENTIAL CASE REAR TAPERED ROLLER BEARING |
| *3 | FRONT DIFFERENTIAL CASE REAR SHIM | *4 | TRANSAXLE CASE OIL SEAL |
| *5 | FRONT DRIVE SHAFT OIL SEAL RH | *6 | FRONT DIFFERENTIAL CASE FRONT TAPERED ROLLER BEARING |
| *7 | TRANSMISSION SLEEVE YOKE | *8 | FRONT NO. 1 DIFFERENTIAL CASE SUB-ASSEMBLY |
| ● | Non-reusable part |
 | MP grease |
Disassembly
DISASSEMBLY PROCEDURE 1. REMOVE NO. 1 CLUTCH HOUSING COVER (a) Remove the No. 1 clutch housing cover from the front transaxle case.
2. REMOVE RELEASE CYLINDER BLEEDER PLUG CAP (a) Remove the release cylinder bleeder plug cap from the release cylinder bleeder plug...
