Toyota Yaris: Parking Brake Assembly / Components
COMPONENTS

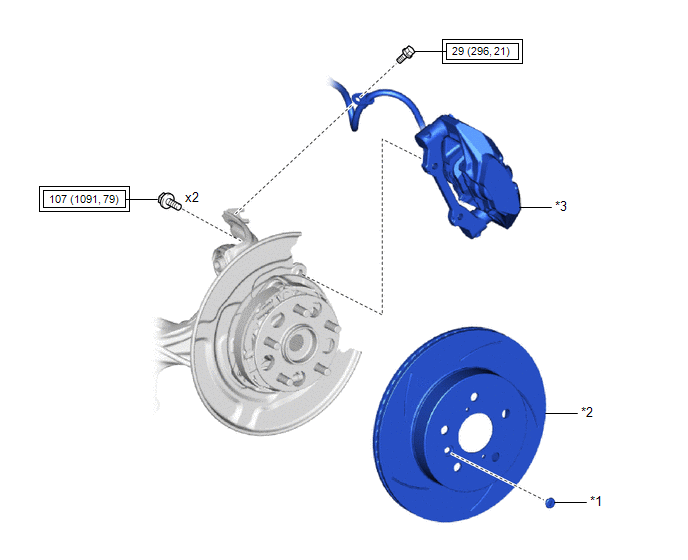

ILLUSTRATION
| *1 | PARKING BRAKE SHOE ADJUSTING HOLE PLUG | *2 | REAR DISC |
| *3 | REAR DISC BRAKE CALIPER ASSEMBLY | - | - |
 | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |

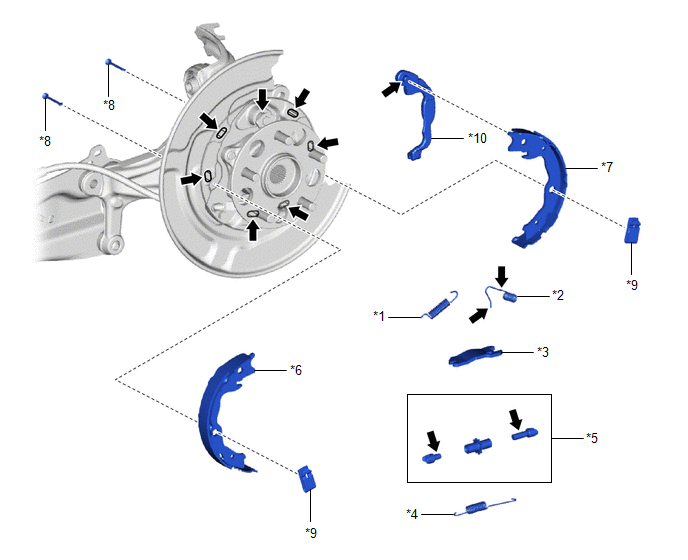

ILLUSTRATION
| *1 | NO. 3 PARKING BRAKE SHOE RETURN TENSION SPRING | *2 | NO. 2 PARKING BRAKE SHOE RETURN TENSION SPRING |
| *3 | PARKING BRAKE SHOE STRUT | *4 | NO. 1 PARKING BRAKE SHOE RETURN TENSION SPRING |
| *5 | PARKING BRAKE SHOE ADJUSTING SCREW SET | *6 | NO. 1 PARKING BRAKE SHOE ASSEMBLY |
| *7 | NO. 2 PARKING BRAKE SHOE ASSEMBLY | *8 | PARKING BRAKE SHOE HOLD DOWN SPRING PIN |
| *9 | PARKING BRAKE SHOE HOLD DOWN SPRING | *10 | PARKING BRAKE SHOE LEVER |
 | High temperature grease | - | - |
Disassembly
DISASSEMBLY CAUTION / NOTICE / HINT HINT:
Use the same procedure for the LH side and RH side.
The following procedure is for the LH side.
PROCEDURE 1...
