Toyota Yaris: Brake Master Cylinder / Components
COMPONENTS
ILLUSTRATION
| *1 | FRONT NO. 1 VENTILATOR SEAL | *2 | WATER GUARD PLATE RH |
| *3 | OUTER COWL TOP PANEL SUB-ASSEMBLY | - | - |
 | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION

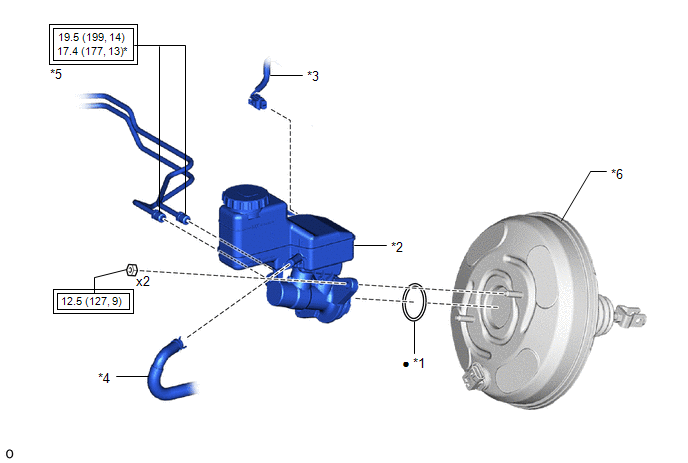

| *1 | BRAKE MASTER CYLINDER O-RING | *2 | BRAKE MASTER CYLINDER SUB-ASSEMBLY |
| *3 | CONNECTOR | *4 | NO. 1 CLUTCH RESERVOIR HOSE |
| *5 | BRAKE LINE | *6 | BRAKE BOOSTER ASSEMBLY |
 | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | * | For use with a union nut wrench |
| ● | Non-reusable part | - | - |
ILLUSTRATION
| *1 | BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY | *2 | BRAKE MASTER CYLINDER RESERVOIR FILLER CAP ASSEMBLY |
| *3 | BRAKE MASTER CYLINDER RESERVOIR STRAINER | *4 | MASTER CYLINDER RESERVOIR GROMMET |
| *5 | BRAKE MASTER CYLINDER BODY | *6 | BRAKE MASTER CYLINDER RING PIN |
 | N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
 | Lithium soap base glycol grease | - | - |
Removal
REMOVAL CAUTION / NOTICE / HINT The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the brake master cylinder sub-assembly removal/installation are shown below...
