Toyota Yaris: Rear Brake / Components
COMPONENTS

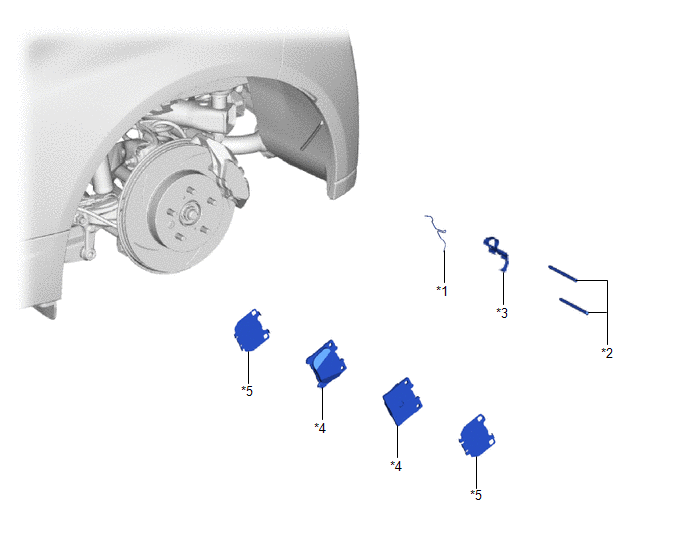

ILLUSTRATION
| *1 | REAR DISC BRAKE PIN HOLD CLIP | *2 | REAR DISC BRAKE ANTI-RATTLE PIN |
| *3 | REAR DISC BRAKE ANTI-RATTLE SPRING | *4 | REAR DISC BRAKE PAD |
| *5 | REAR DISC BRAKE ANTI-SQUEAL SHIM | - | - |

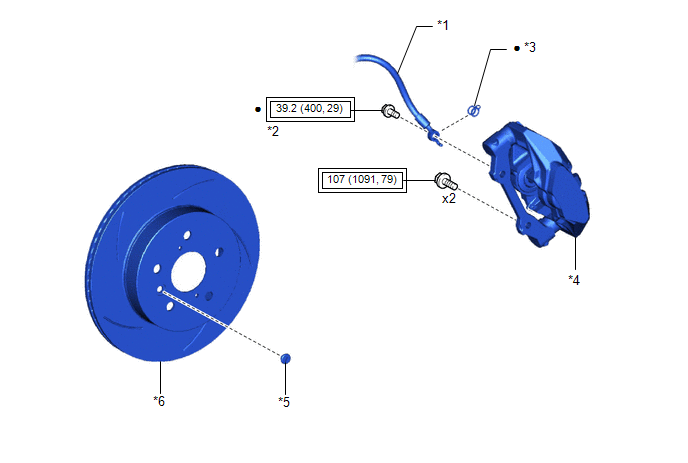

ILLUSTRATION
| *1 | REAR FLEXIBLE HOSE | *2 | UNION BOLT |
| *3 | GASKET | *4 | REAR DISC BRAKE CYLINDER ASSEMBLY |
| *5 | PARKING BRAKE SHOE ADJUSTING HOLE PLUG | *6 | REAR DISC |
 | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | ● | Non-reusable part |
ILLUSTRATION
| *1 | CYLINDER BOOT | *2 | REAR DISC BRAKE PISTON |
| *3 | PISTON SEAL | *4 | REAR DISC BRAKE BLEEDER PLUG CAP |
| *5 | REAR DISC BRAKE BLEEDER PLUG | *6 | REAR DISC BRAKE CYLINDER |
 | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | ● | Non-reusable part |
 | Lithium soap base glycol grease | - | - |
Rear Brake
..
Removal
REMOVAL CAUTION / NOTICE / HINT NOTICE:
To avoid degrading the precision of the assembly, do not loosen or remove the 2 bolts shown in the illustration...
