COMPONENTS

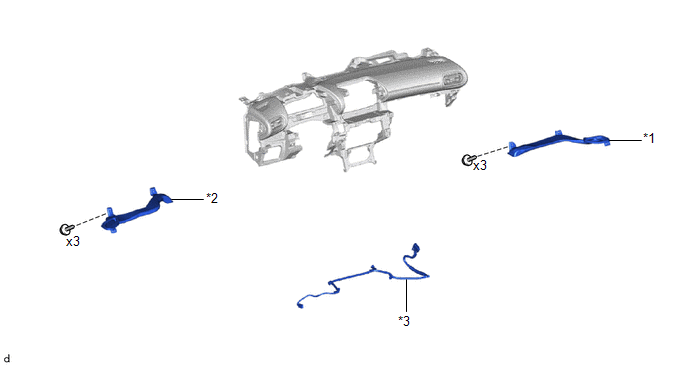

ILLUSTRATION

*1

NO. 1 SIDE DEFROSTER NOZZLE DUCT

*2

NO. 2 SIDE DEFROSTER NOZZLE DUCT

*3

ANTENNA CORD SUB-ASSEMBLY

-

-

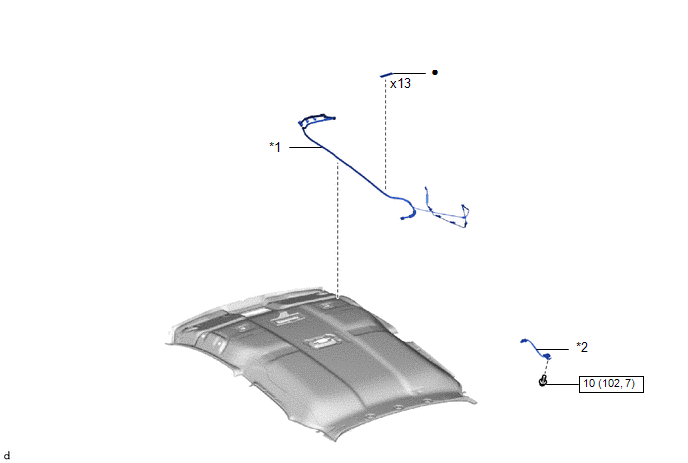

ILLUSTRATION

*1

NO. 2 ANTENNA CORD SUB-ASSEMBLY

*2

NO. 8 ANTENNA CORD SUB-ASSEMBLY

N*m (kgf*cm, ft.*lbf): Specified torque

Non-reusable part
