Toyota Yaris: Front Evaporator Temperature Sensor / Components
COMPONENTS

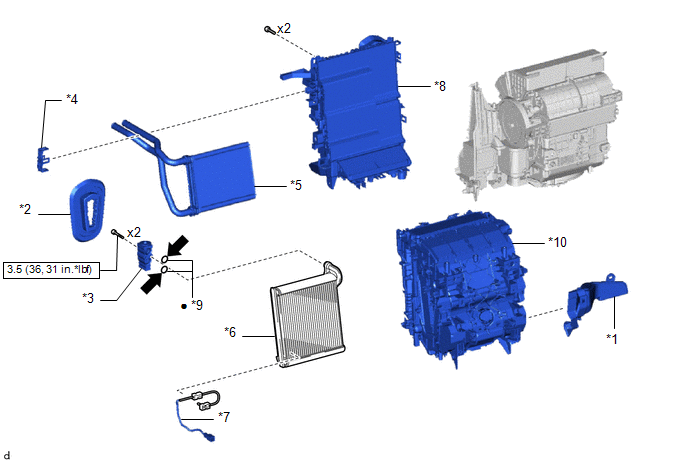

ILLUSTRATION
*1 | NO. 2 AIR DUCT | *2 | COOLER PIPE GROMMET |
*3 | COOLER EXPANSION VALVE | *4 | HEATER CLAMP |
*5 | HEATER RADIATOR UNIT SUB-ASSEMBLY | *6 | NO. 1 COOLER EVAPORATOR SUB-ASSEMBLY |
*7 | NO. 1 COOLER THERMISTOR | *8 | UPPER HEATER CASE |
*9 | O-ring | *10 | LOWER HEATER CASE |
| N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
| Compressor oil ND-OIL 8 or equivalent | - | - |
REMOVAL PROCEDURE 1. REMOVE BLOWER ASSEMBLY Click here
2. REMOVE NO. 2 AIR DUCT Click here
3. REMOVE COOLER PIPE GROMMET Click here
4. REMOVE COOLER EXPANSION VALVE Click here
5...
