Toyota Yaris: Combination Meter / Components
COMPONENTS
ILLUSTRATION

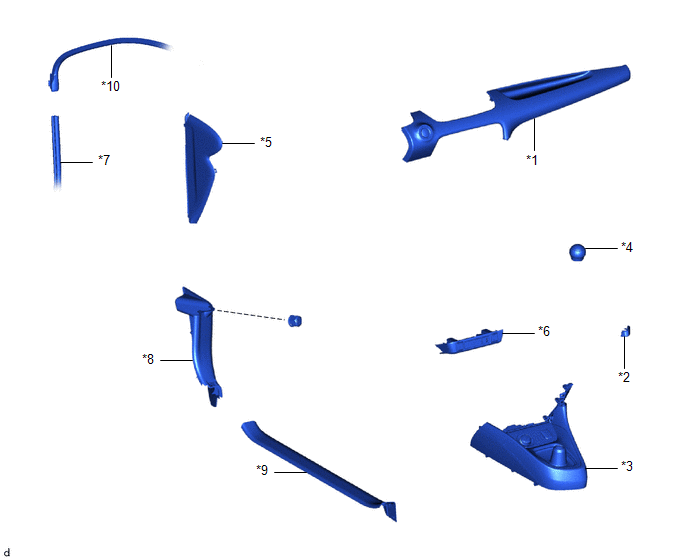

| *1 | LOWER INSTRUMENT PANEL FINISH PANEL | *2 | CENTER LOWER INSTRUMENT COVER |
| *3 | CONSOLE BOX ASSEMBLY | *4 | SHIFT LEVER KNOB SUB-ASSEMBLY |
| *5 | NO. 1 INSTRUMENT SIDE PANEL | *6 | SWITCH HOLE BASE SUB-ASSEMBLY |
| *7 | FRONT DOOR OPENING TRIM WEATHERSTRIP LH | *8 | COWL SIDE TRIM BOARD LH |
| *9 | FRONT DOOR SCUFF PLATE LH | *10 | NO. 1 ROOF HEADLINING MOULDING LH |
ILLUSTRATION

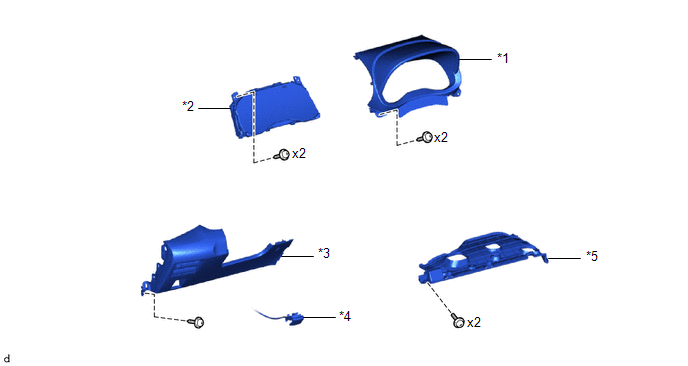

| *1 | INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY | *2 | COMBINATION METER ASSEMBLY |
| *3 | LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY | *4 | HOOD LOCK CONTROL LEVER SUB-ASSEMBLY |
| *5 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY | - | - |
ILLUSTRATION

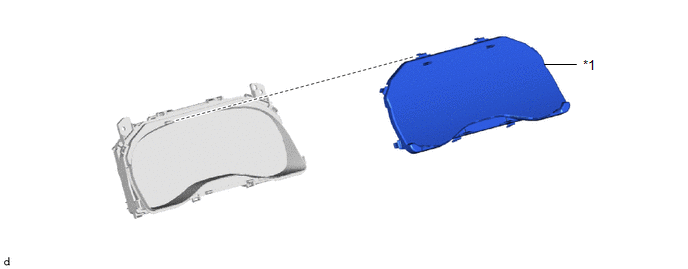

| *1 | COMBINATION METER GLASS | - | - |
Removal
REMOVAL CAUTION / NOTICE / HINT HINT: When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating...
