Toyota Yaris: Compressor / Components
COMPONENTS

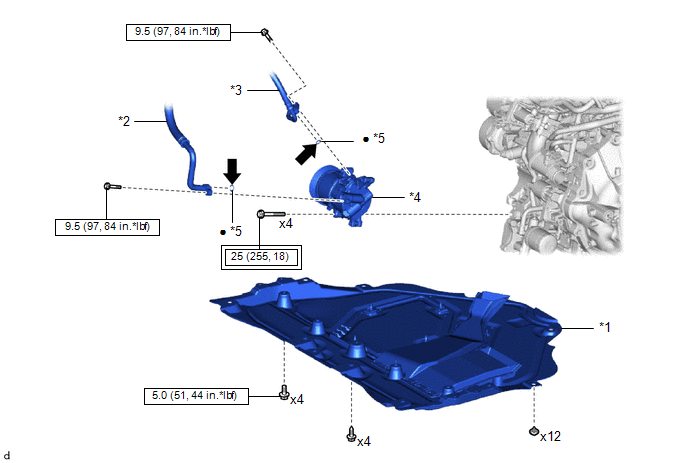

ILLUSTRATION
| *1 | NO. 1 ENGINE UNDER COVER ASSEMBLY | *2 | SUCTION HOSE SUB-ASSEMBLY |
| *3 | NO. 1 COOLER REFRIGERANT DISCHARGE HOSE | *4 | COMPRESSOR WITH PULLEY ASSEMBLY |
| *5 | O-ring | - | - |
 | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) |
 | N*m (kgf*cm, ft.*lbf): Specified torque |
| ● | Non-reusable part |
 | Compressor oil ND-OIL 8 or equivalent |
Compressor
..
Removal
REMOVAL PROCEDURE 1. RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM Click here
2. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY Click here
3. REMOVE FAN AND GENERATOR V BELT Click here
4...
