Toyota Yaris: Wiper Ecu / Components
COMPONENTS

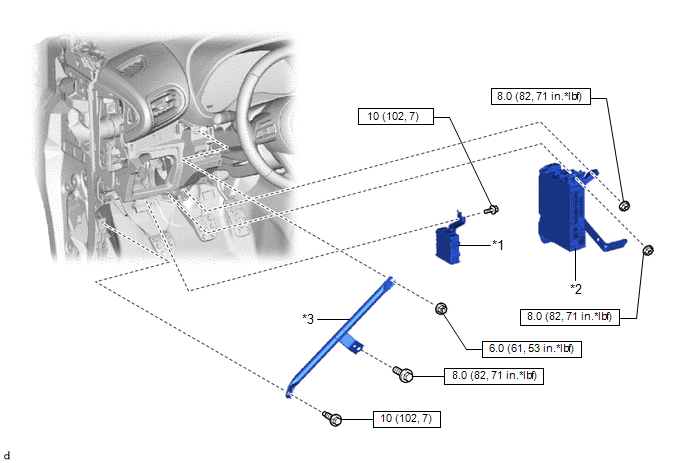

ILLUSTRATION
| *1 | WINDSHIELD WIPER RELAY ASSEMBLY | *2 | POWER DISTRIBUTION BOX ASSEMBLY WITH MULTIPLEX NETWORK BODY ECU |
| *3 | NO. 3 INSTRUMENT PANEL TO COWL BRACE SUB-ASSEMBLY | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
REMOVAL CAUTION / NOTICE / HINT HINT: When the cable is disconnected/reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used...
