Toyota Yaris: Rear Trailing Arm / Components
COMPONENTS

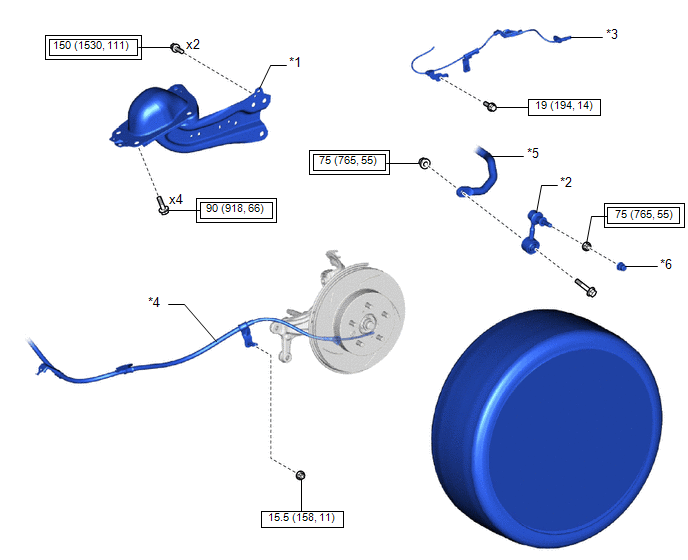

ILLUSTRATION
| *1 | REAR TRAILING ARM ASSEMBLY | *2 | REAR STABILIZER LINK ASSEMBLY |
| *3 | REAR SPEED SENSOR | *4 | NO. 3 PARKING BRAKE CABLE ASSEMBLY |
| *5 | REAR STABILIZER BAR | *6 | CAP |
 | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) |
 | N*m (kgf*cm, ft.*lbf): Specified torque |

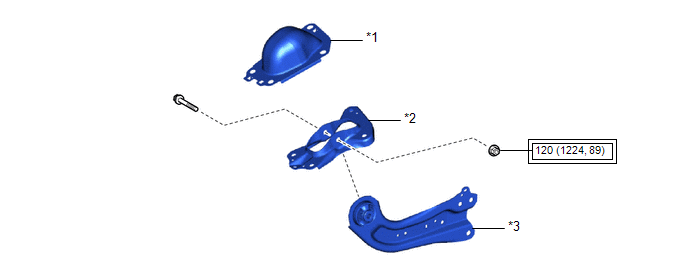

ILLUSTRATION
| *1 | REAR NO. 1 SUSPENSION SUPPORT COVER | *2 | REAR SUSPENSION ARM BRACKET |
| *3 | REAR TRAILING ARM ASSEMBLY | - | - |
 | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | - | - |
Removal
REMOVAL CAUTION / NOTICE / HINT The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during rear trailing arm assembly removal/installation are shown below...
