COMPONENTS

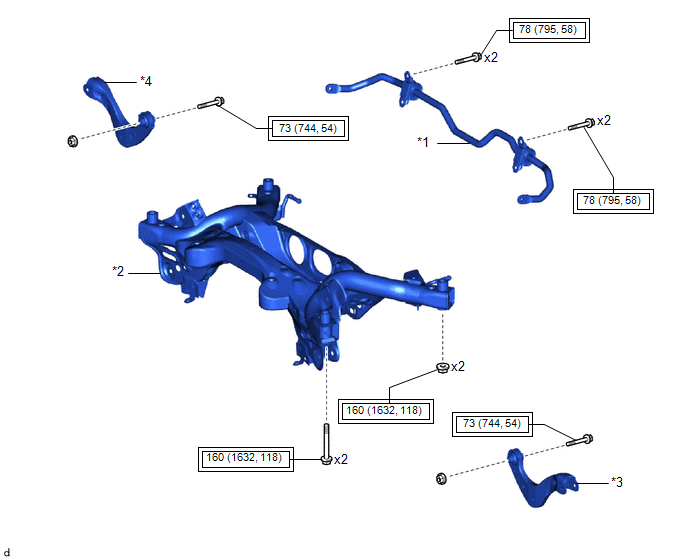

ILLUSTRATION

*1

REAR STABILIZER BAR

*2

REAR SUSPENSION MEMBER SUB-ASSEMBLY

*3

REAR UPPER CONTROL ARM ASSEMBLY LH

*4

REAR UPPER CONTROL ARM ASSEMBLY RH

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

-

-

ILLUSTRATION

*1

HOLE PLUG

*2

REAR NO. 1 DIFFERENTIAL MOUNT CUSHION

*3

REAR SUSPENSION MEMBER HOLE COVER

-

-

Non-reusable part

-

-

    Rear Suspension Member

    ..

    Removal

    REMOVAL CAUTION / NOTICE / HINT The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during rear suspension member sub-assembly removal/installation are shown below...
