Toyota Yaris: Rear Shock Absorber / Components

Toyota Yaris XP210 (2020-2025) Reapir and Service Manual / Suspension / Rear Suspension / Rear Shock Absorber / Components

COMPONENTS

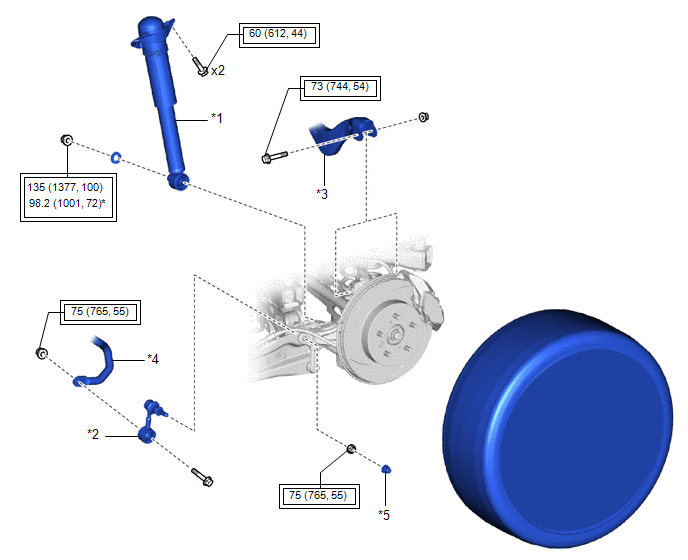

ILLUSTRATION

*1

REAR SHOCK ABSORBER ASSEMBLY

*2

REAR STABILIZER LINK ASSEMBLY

*3

REAR UPPER CONTROL ARM ASSEMBLY

*4

REAR STABILIZER BAR

*5

CAP

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

*

For use with a ball joint lock nut wrench

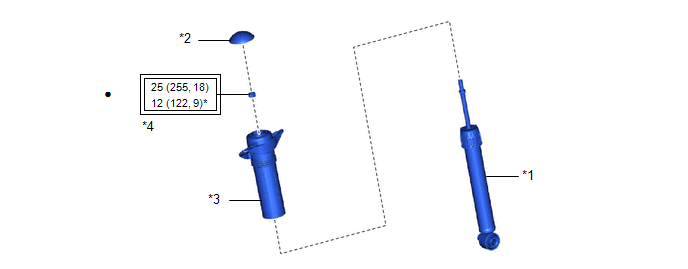

ILLUSTRATION

*1

REAR SHOCK ABSORBER ASSEMBLY

*2

REAR SHOCK ABSORBER CAP

*3

REAR SUSPENSION SUPPORT ASSEMBLY

*4

REAR SUPPORT TO REAR SHOCK ABSORBER NUT

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

*

For use with SST

Non-reusable part

Adhesive 1324

Precoated part

-

-

    Rear Shock Absorber

    ..

    Removal

    REMOVAL CAUTION / NOTICE / HINT The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during rear shock absorber assembly removal/installation are shown below...
