Toyota Yaris: Turbocharger / Components
COMPONENTS

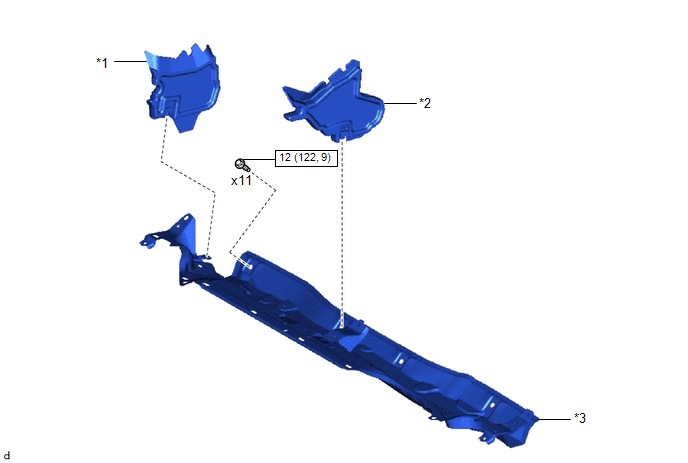

ILLUSTRATION
| *1 | WATER GUARD PLATE RH | *2 | NO. 1 FRONT VENTILATOR SEAL |
| *3 | OUTER COWL TOP PANEL SUB-ASSEMBLY | - | - |
 | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

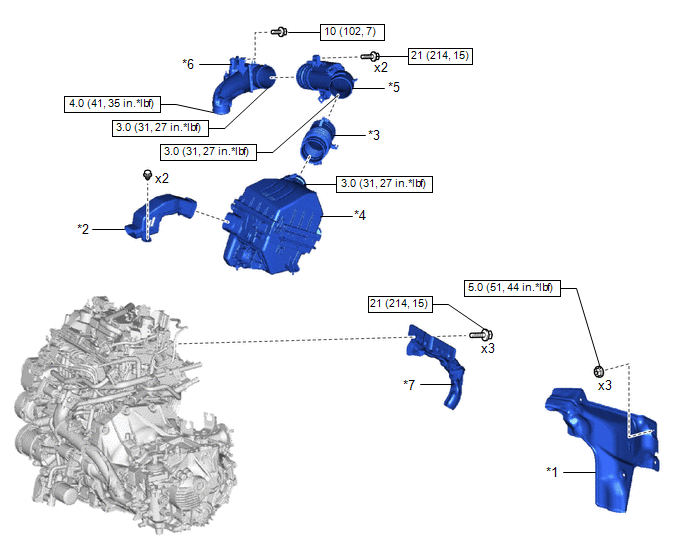

ILLUSTRATION
| *1 | DASH PANEL HEAT INSULATOR | *2 | NO. 1 AIR CLEANER INLET |
| *3 | NO. 1 AIR CLEANER HOSE | *4 | AIR CLEANER CASE SUB-ASSEMBLY |
| *5 | INTAKE AIR RESONATOR | *6 | NO. 1 AIR INLET DUCT |
| *7 | NO. 1 TURBO INSULATOR | - | - |
 | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

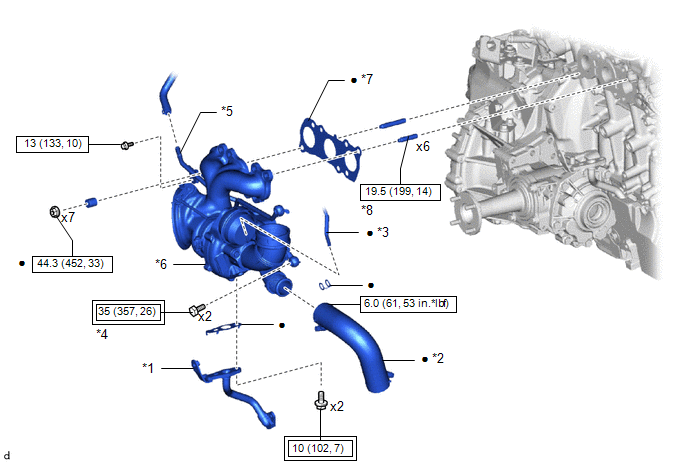

ILLUSTRATION
| *1 | TURBO OIL OUTLET PIPE | *2 | NO. 2 AIR HOSE |
| *3 | NO. 2 VACUUM TRANSMITTING HOSE | *4 | TURBO OIL INLET PIPE UNION BOLT |
| *5 | NO. 1 TURBO WATER PIPE SUB-ASSEMBLY | *6 | TURBOCHARGER SUB-ASSEMBLY |
| *7 | EXHAUST MANIFOLD TO HEAD GASKET | *8 | STUD BOLT |
 | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

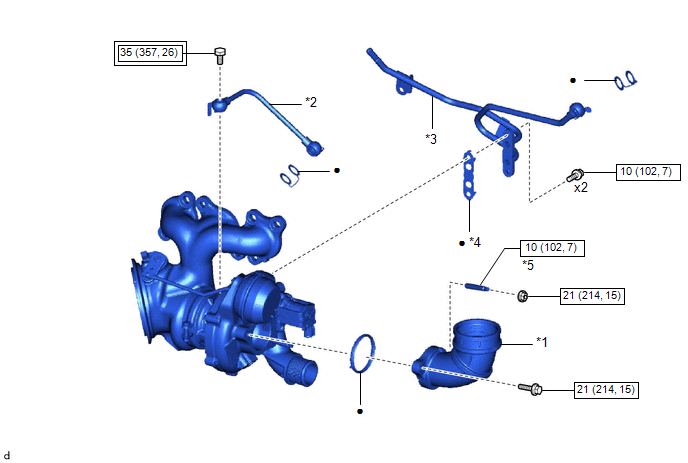

ILLUSTRATION
| *1 | COMPRESSOR INLET ELBOW | *2 | TURBO OIL INLET PIPE SUB-ASSEMBLY |
| *3 | NO. 1 TURBO WATER PIPE SUB-ASSEMBLY | *4 | TURBO WATER PIPE GASKET |
| *5 | STUD BOLT | - | - |
 | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) |
 | N*m (kgf*cm, ft.*lbf): Specified torque |
| ● | Non-reusable part | - | - |
Precaution
PRECAUTION MAINTENANCE PRECAUTION (a) If the turbocharger sub-assembly is found to be defective, it must be replaced. Make sure to identify the cause of the problem including the conditions under which the turbocharger sub-assembly was used...
On-vehicle Inspection
ON-VEHICLE INSPECTION CAUTION / NOTICE / HINT CAUTION: To prevent injury due to contact with an operating V-ribbed belt or cooling fan, keep your hands and clothing away from the V-ribbed belt and cooling fan when working in the engine compartment with the engine running or the ignition switch ON...
