Toyota Yaris: Intake Manifold / Components
COMPONENTS

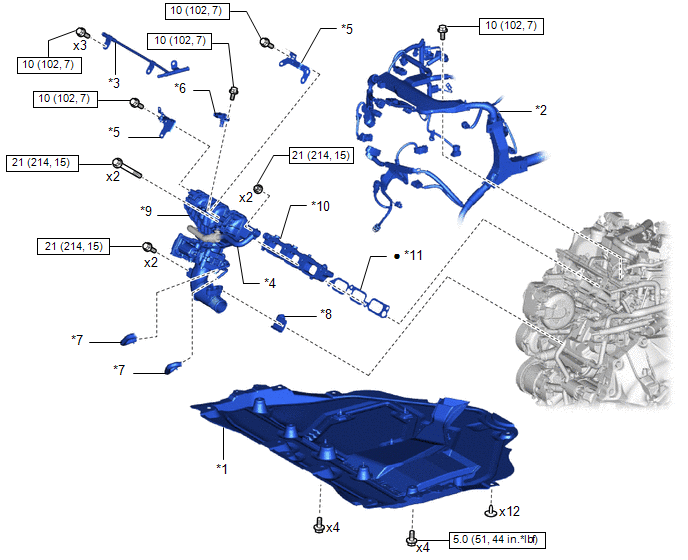

ILLUSTRATION
| *1 | NO. 1 ENGINE UNDER COVER ASSEMBLY | *2 | ENGINE WIRE |
| *3 | NO. 4 WATER BY-PASS PIPE | *4 | NO. 1 FUEL VAPOR FEED HOSE |
| *5 | WIRE HARNESS CLAMP BRACKET | *6 | E.F.I. VACUUM SENSOR ASSEMBLY |
| *7 | WATER BY-PASS HOSE | *8 | INTAKE AIR CONNECTOR BRACKET |
| *9 | INTAKE MANIFOLD | *10 | NO. 1 VENTILATION FLANGE SEPARATOR |
| *11 | NO. 1 INTAKE MANIFOLD TO HEAD GASKET | - | - |
 | N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |

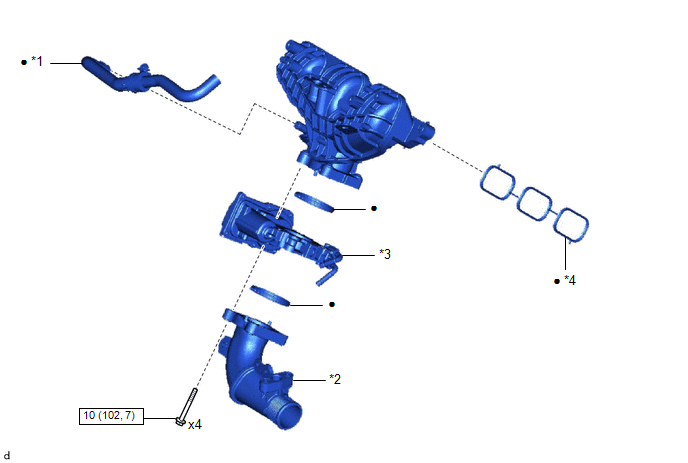

ILLUSTRATION
| *1 | NO. 1 FUEL VAPOR FEED HOSE | *2 | AIR TUBE ASSEMBLY |
| *3 | THROTTLE W/ THROTTLE POSITION SENSOR BODY ASSEMBLY | *4 | MANIFOLD TO CYLINDER HEAD GASKET |
 | N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
Removal
REMOVAL CAUTION / NOTICE / HINT The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during intake manifold removal/installation are shown below...
