Toyota Yaris: Camshaft / Components
COMPONENTS
ILLUSTRATION
| *1 | SPARK PLUG | *2 | OIL PRESSURE AND TEMPERATURE SENSOR |
| *3 | CAMSHAFT POSITION SENSOR (for Intake Side) | *4 | CAMSHAFT POSITION SENSOR (for Exhaust Side) |
| *5 | CAM TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Side) | *6 | CAM TIMING OIL CONTROL SOLENOID ASSEMBLY (for Exhaust Side) |
| *7 | WATER INLET WITH THERMOSTAT SUB-ASSEMBLY | *8 | WATER INLET WITH WATER PUMP HOUSING SUB-ASSEMBLY |
| *9 | OIL FILLER CAP ASSEMBLY | *10 | O-RING |
| *11 | CRANKSHAFT POSITION SENSOR | *12 | PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY) |
| *13 | VACUUM PUMP ASSEMBLY | *14 | GASKET |
| *15 | NO. 4 O-RING | *16 | NO. 2 O-RING |
 | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) |
 | N*m (kgf*cm, ft.*lbf): Specified torque |
| ● | Non-reusable part | ★ | Precoated part |

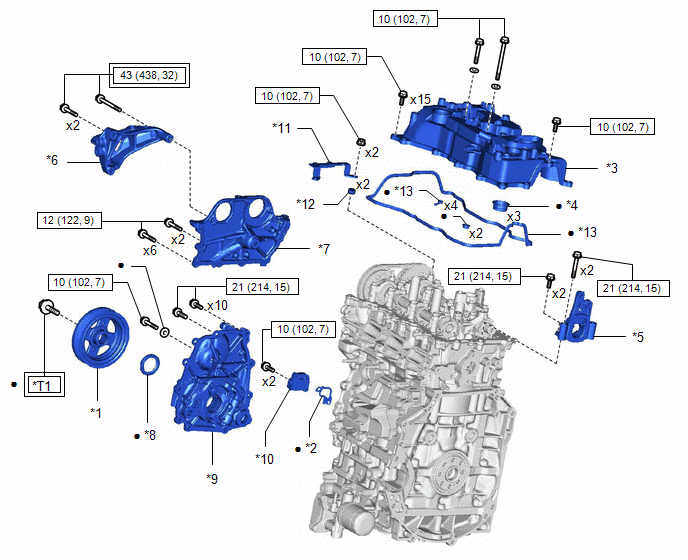

ILLUSTRATION
| *1 | CRANKSHAFT PULLEY ASSEMBLY | *2 | CHAIN TENSIONER GASKET |
| *3 | CYLINDER HEAD COVER SUB-ASSEMBLY | *4 | SPARK PLUG TUBE GASKET |
| *5 | NO. 1 VACUUM PUMP BRACKET | *6 | ENGINE MOUNTING BRACKET RH |
| *7 | NO. 2 TIMING CHAIN COVER ASSEMBLY | *8 | TIMING CHAIN COVER OIL SEAL |
| *9 | TIMING CHAIN COVER ASSEMBLY | *10 | NO. 1 CHAIN TENSIONER ASSEMBLY |
| *11 | TIMING CHAIN GUIDE | *12 | DAMPER PLATE SPACER |
| *13 | CYLINDER HEAD COVER GASKET | - | - |
 | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) |
 | N*m (kgf*cm, ft.*lbf): Specified torque |
| ● | Non-reusable part | - | - |
| *T1 | 1st: 260 (2651, 192) 2nd: Turn 90° | - | - |

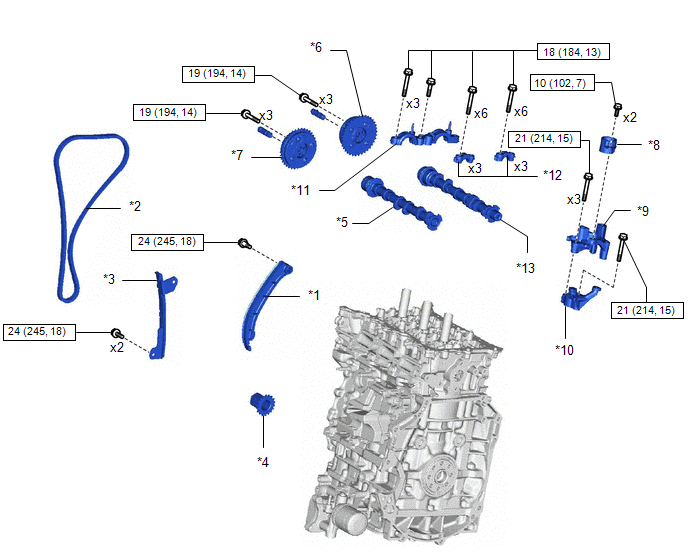

ILLUSTRATION
| *1 | CHAIN TENSIONER SLIPPER | *2 | CHAIN SUB-ASSEMBLY |
| *3 | NO. 1 CHAIN VIBRATION DAMPER | *4 | CRANKSHAFT TIMING GEAR OR SPROCKET |
| *5 | INTAKE CAMSHAFT SUB-ASSEMBLY | *6 | CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY |
| *7 | CAMSHAFT TIMING GEAR ASSEMBLY | *8 | FUEL PUMP LIFTER GUIDE |
| *9 | FUEL PUMP LIFTER HOUSING | *10 | CAMSHAFT POSITION SENSOR HOLDER |
| *11 | NO. 2 CAMSHAFT BEARING CAP | *12 | NO. 4 CAMSHAFT BEARING CAP |
| *13 | EXHAUST CAMSHAFT SUB-ASSEMBLY | - | - |
 | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
Camshaft
..
Removal
REMOVAL CAUTION / NOTICE / HINT The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during camshaft removal/installation are shown below...
