Toyota Yaris: Vent Operation / Adjusting the Vents
Air vent open/close
The air vents can be fully opened and closed by operating the knob.

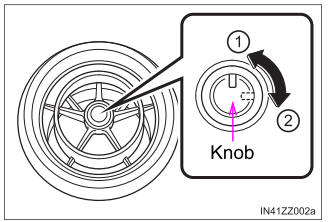

Center vents (driver) and Side vents
- Open
- Close

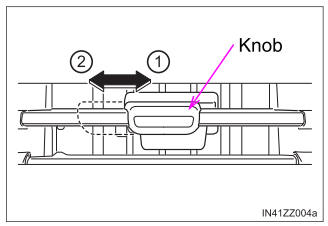

Center vents (front passenger)
- Open
- Close

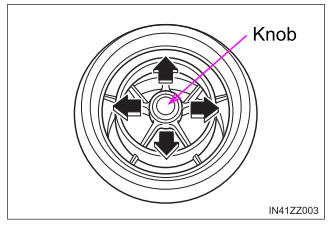

Directing airflow
To adjust the direction of airflow, move the adjustment knob.
Center vents (driver) and Side vents
Center vents (front passenger)
When using the air conditioner under humid ambient temperature conditions, the system may blow fog from the vents. This is not a sign of trouble but a result of humid air being suddenly cooled.
