Toyota Yaris: Turn and Lane-Change Signals / Turn Signals

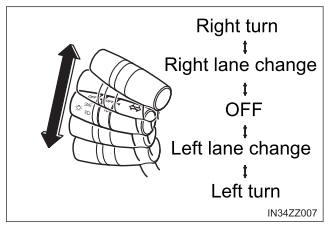

Move the signal lever down (for a
left turn) or up (for a right turn) to
the stop position. The signal will
self-cancel after the turn is completed.
If the indicator light continues to
flash after a turn, manually return
the lever to its original position.

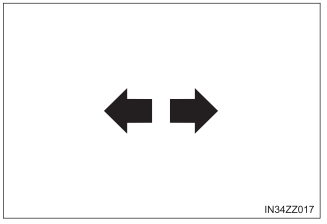

The turn signal indicators (green)
in the combination meter flash
according to the operation of the
turn signal lever to show which
signal is working.

- If an indicator light stays on without flashing or if it flashes
abnormally, one
of the turn signal bulbs may be burned out.
- A customized function is available to change the turn indicator sound
volume.
Move the lever halfway toward the direction of the lane change—until
the indicator flashes—and hold it there. It will return to the off position
when released...
