MONITOR DESCRIPTION

The auxiliary battery supplies electricity to the ECM even when the ignition switch is off. This power allows the ECM to store data such as DTC history, Freeze Frame Data and fuel trim values. If the auxiliary battery voltage falls below a minimum level, the memory is cleared and the ECM determines that there is a malfunction in the power supply circuit. The next time the engine is started, the ECM will illuminate the MIL and store this DTC.

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

MIL

Memory

Note

P056014

System Voltage Circuit Short to Ground or Open

An open or short in the ECM backup power source circuit (1 trip detection logic).

  • Open or short in backup power source circuit
  • Auxiliary battery
  • Auxiliary battery terminals
  • ECM

Comes on

DTC stored

SAE: P0562

MONITOR STRATEGY

Required Sensors/Components

ECM

Frequency of Operation

Continuous

TYPICAL MALFUNCTION THRESHOLDS

Continuous auxiliary battery voltage

Less than 3.5 V

CONFIRMATION DRIVING PATTERN

  1. Connect the GTS to the DLC3.
  2. Turn the ignition switch to ON.
  3. Turn the GTS on.
  4. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
  5. Turn the ignition switch off and wait for at least 30 seconds.
  6. Turn the ignition switch to ON.
  7. Turn the GTS on.
  8. Wait 5 seconds or more.
  9. Enter the following menus: Powertrain / Engine / Trouble Codes.
  10. Read the pending DTCs.

    HINT:

    • If a pending DTC is output, the system is malfunctioning.
    • If a pending DTC is not output, perform the following procedure.
  11. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
  12. Input the DTC: P056014.
  13. Check the DTC judgment result.

    GTS Display

    Description

    NORMAL

    • DTC judgment completed
    • System normal

    ABNORMAL

    • DTC judgment completed
    • System abnormal

    INCOMPLETE

    • DTC judgment not completed
    • Perform driving pattern after confirming DTC enabling conditions

    HINT:

    • If the judgment result is NORMAL, the system is normal.
    • If the judgment result is ABNORMAL, the system is malfunctioning.

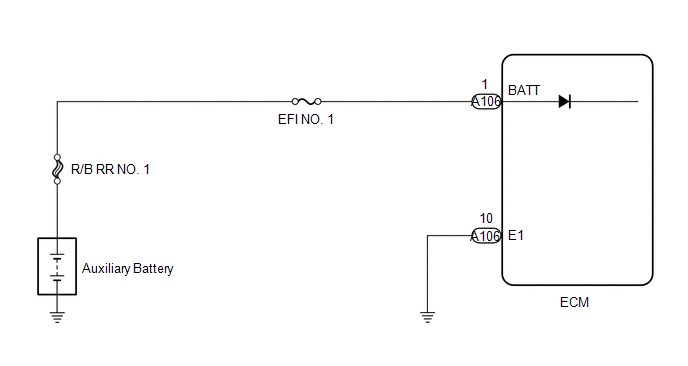

WIRING DIAGRAM

CAUTION / NOTICE / HINT

NOTICE:

  • Inspect the fuses for circuits related to this system before performing the following procedure.
  • After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

    Click here

  • When disconnecting and reconnecting the auxiliary battery.

    HINT:

    When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

HINT:

Read Freeze Frame Data using the GTS. The ECM records vehicle and driving condition information as Freeze Frame Data the moment a DTC is stored. When troubleshooting, Freeze Frame Data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.

PROCEDURE

1.

INSPECT AUXILIARY BATTERY

(a) Inspect that the auxiliary battery is not depleted.

Click here

OK:

Auxiliary battery is not depleted

NG

CHARGE OR REPLACE AUXILIARY BATTERY

OK

2.

CHECK AUXILIARY BATTERY

(a) Check that the auxiliary battery terminals are not loose or corroded.

OK:

Auxiliary battery terminals are not loose or corroded.

NG

REPAIR OR REPLACE AUXILIARY BATTERY TERMINAL

OK

3.

CHECK TERMINAL VOLTAGE (POWER SOURCE OF ECM)

(a) Disconnect the ECM connector.

(b) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

A106-1(BATT) - Body ground

Always

11 to 14 V

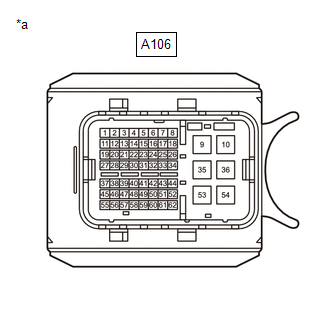

*a

Front view of wire harness connector

(to ECM)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (AUXILIARY BATTERY - ECM)

OK

4.

CLEAR DTC

(a) Clear the DTCs.

Powertrain > Engine > Clear DTCs

(b) Turn the ignition switch off and wait for at least 30 seconds.

NEXT

5.

CHECK WHETHER DTC OUTPUT RECURS (DTC P056014)

(a) Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.

(b) Read the DTCs.

Powertrain > Engine > Trouble Codes

Result

Proceed to

DTCs are not output

A

P056014 is output

B

A

CHECK FOR INTERMITTENT PROBLEMS

B

REPLACE ECM
