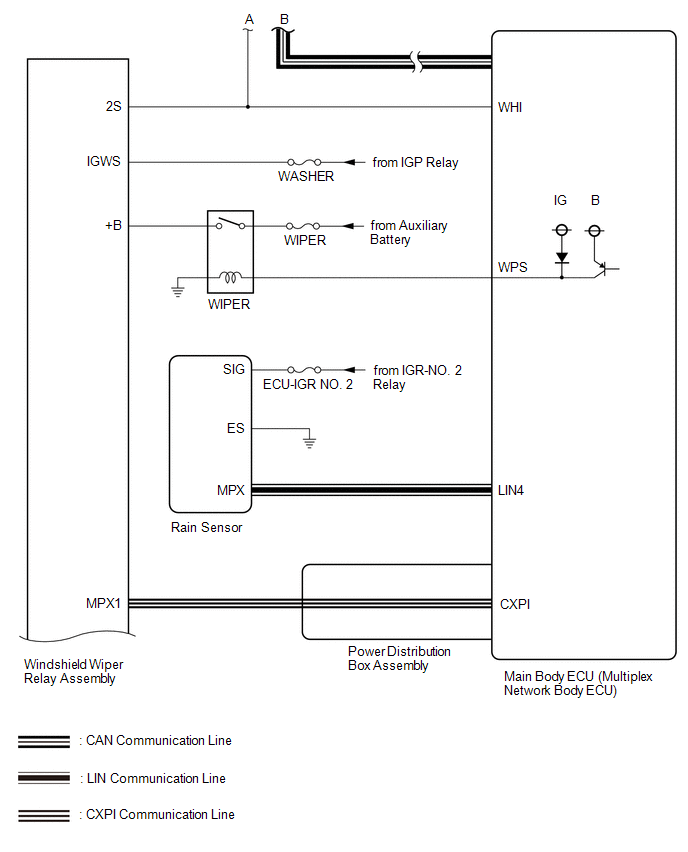

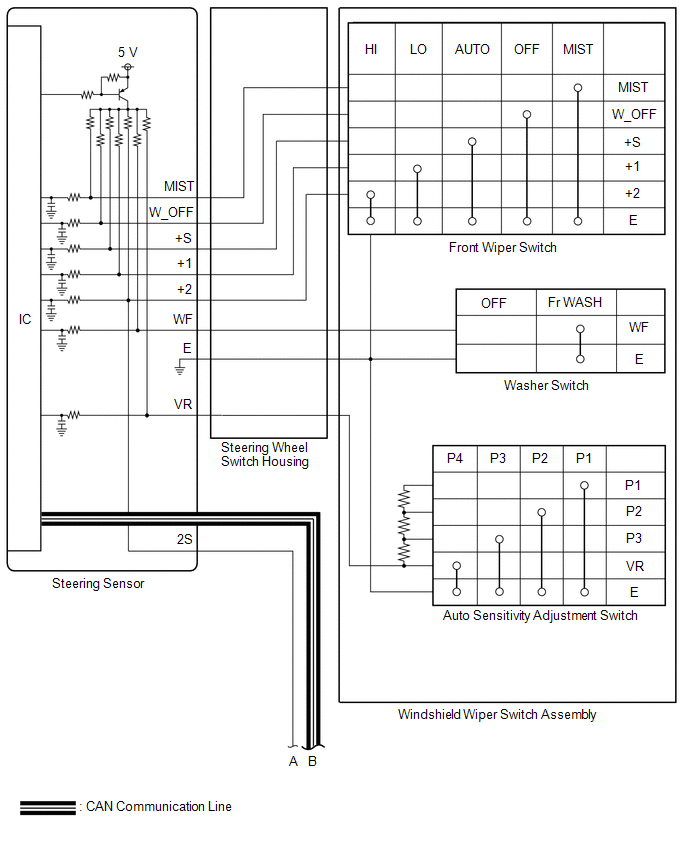

SYSTEM DIAGRAM

FRONT WIPER AND WASHER SYSTEM

    Parts Location

    PARTS LOCATION ILLUSTRATION *1 WINDSHIELD WIPER MOTOR ASSEMBLY *2 WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY *3 NO. 1 ENGINE ROOM RELAY BLOCK AND NO...

    System Description

    SYSTEM DESCRIPTION FRONT WIPER CONTROL FUNCTION Control/Function Description MIST function Operates the front wipers in LO when the front wiper switch is held in the MIST position...
