Toyota Yaris: Power Steering System / Supply Voltage Circuit Circuit Voltage Above Threshold (C123A17)

Toyota Yaris XP210 (2020-2022) Reapir and Service Manual / Steering / Power Assist Systems / Power Steering System / Supply Voltage Circuit Circuit Voltage Above Threshold (C123A17)

DESCRIPTION

The power steering ECU assembly distinguishes the ignition switch status as ON or off through the IG power source circuit.

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

Warning Indicate

Return-to-normal Condition

Note

C123A17

Supply Voltage Circuit Circuit Voltage Above Threshold

IG voltage is 18.5 V or more

  • EPS-IGR fuse
  • IG power source circuit
  • Power steering ECU assembly

EPS warning light: Comes on

The ECU judges the system has returned to normal or the ignition switch is turned ON again

-

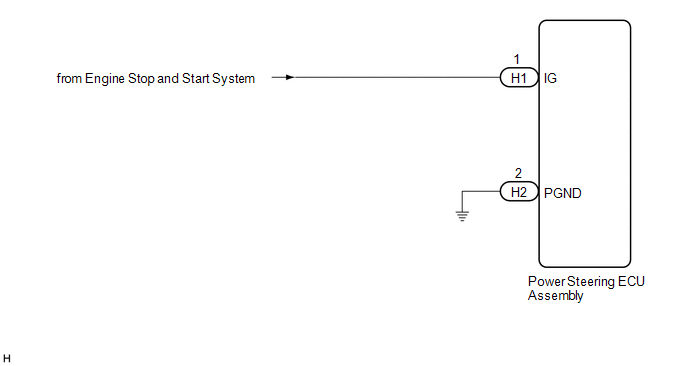

WIRING DIAGRAM

CAUTION / NOTICE / HINT

NOTICE:

When the power steering ECU assembly has been replaced, perform Power Steering ECU Initial Setting (assist map writing).

Click here

PROCEDURE

1.

CHECK HARNESS AND CONNECTOR (IG POWER SOURCE)

(a) Disconnect the H1 power steering ECU assembly connectors.

(b) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Switch Condition

Specified Condition

H1-1 (IG) - Body ground

Ignition switch ON

8 to 16 V

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

OK

2.

CHECK HARNESS AND CONNECTOR (IG POWER SOURCE)

(a) Disconnect the H2 power steering ECU assembly connectors.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

H2-2 (PGND) - Body ground

Always

Below 1 Ω

OK

REPLACE POWER STEERING ECU ASSEMBLY

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
